100-1000g/m2
Yingfan

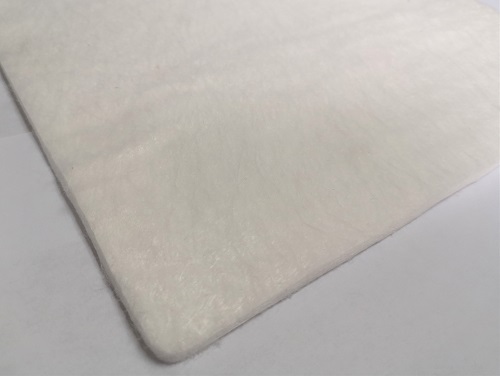

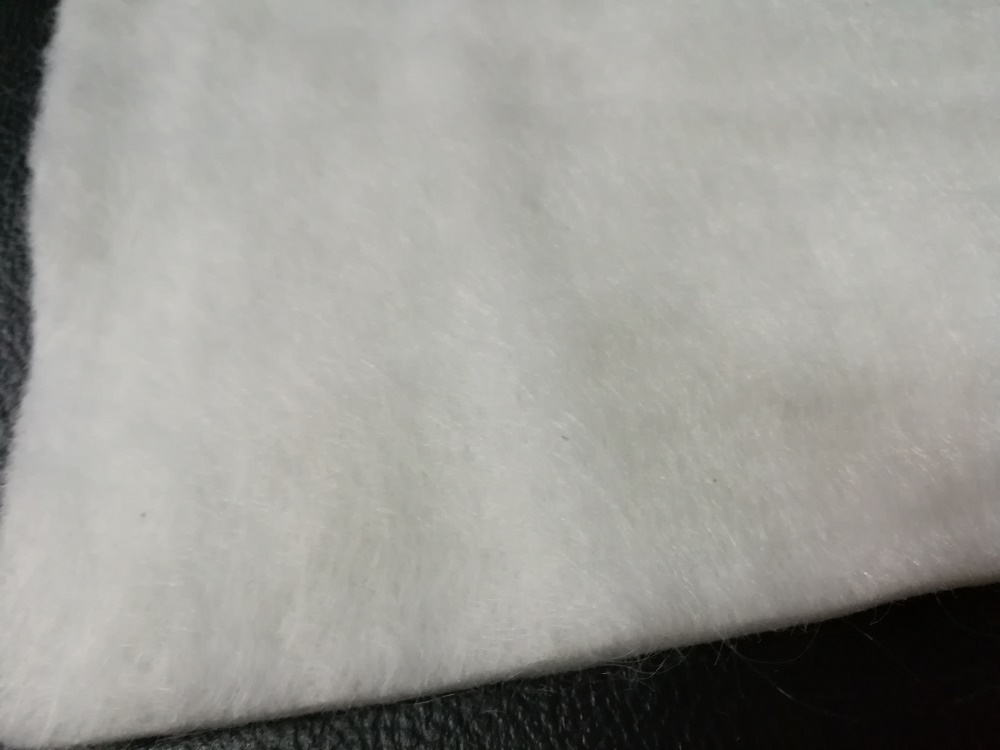

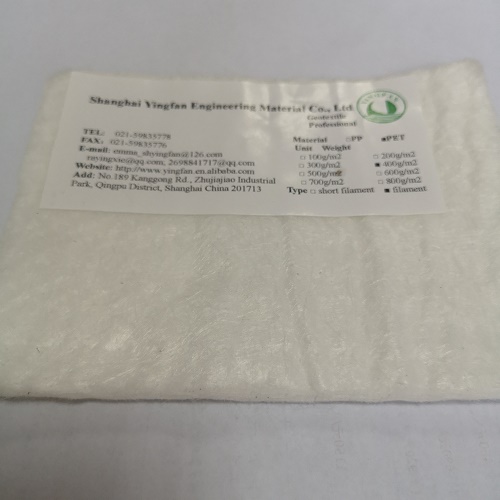

The 500g/m² PET Continuous Filament Drainage Geotextile is a high-performance nonwoven geosynthetic product engineered by Yingfan, a professional manufacturer with ISO9001:2008/ISO14001/ISO45001 certifications. Crafted from premium virgin polyester chips via advanced spunbond process, this geotextile features a stable 3D porous structure formed by interlocking continuous filaments. Designed to deliver exceptional drainage, reinforcement, and protection, it stands out as a reliable solution for civil engineering, environmental protection, and infrastructure projects. As a core product in Yingfan's geotextile lineup, it balances strength, durability, and versatility, making it a top choice for engineers and contractors worldwide.
Parameter | Details |
Product Name | PET Continuous Filament Drainage Geotextile |
Model Range | 100-1000g/m² (500g/m² as standard) |
Material | 100% PET (Polyethylene Terephthalate) |
Width | 1m-6m (customizable per customer demand) |
Length | 50m/roll, 100m/roll (customizable) |
Color | White |
Execution Standard | GB/T 17639-2008 |
The geotextile is manufactured from virgin polyester chips—a high-quality raw material that ensures consistent performance and longevity. Through the spunbond process, molten polyester is extruded into continuous filaments, which are then randomly distributed and punched to form a stable 3D nonwoven structure. This manufacturing method eliminates weak points in the fabric, enhancing its tensile strength and structural integrity. The PET material inherently boasts chemical stability, resistance to biological degradation, and compatibility with various soil and environmental conditions, making it suitable for long-term outdoor applications.
Superior Tensile Strength: The 3D interlocked filament structure provides high mechanical strength, enabling the geotextile to withstand heavy loads and lateral forces in construction projects.
Excellent Erosion Resistance: Effectively prevents soil erosion by filtering and stabilizing soil particles while allowing water to drain freely—critical for slope protection and coastal engineering.
Outstanding Aging-Resistance: PET material's inherent resistance to UV radiation, temperature fluctuations, and chemical corrosion ensures long-term performance even in harsh outdoor environments.
Reliable Creep Property: Maintains structural stability under sustained loads, avoiding deformation over time and ensuring the longevity of reinforced structures.
Exceptional Drainage Performance: The porous 3D structure facilitates rapid water infiltration and drainage, reducing hydrostatic pressure in soil and preventing waterlogging.
Customizable Dimensions: Supports width and length customization to fit specific project requirements, minimizing material waste and installation time.
Road & Railway Engineering: Used as a separation, filtration, and drainage layer in roadbeds and railway subgrades to stabilize soft ground, prevent soil mixing, and extend infrastructure service life.
Slope Protection & Erosion Control: Applied in hillside, riverbank, and coastal slope reinforcement to prevent soil loss, enhance slope stability, and protect ecological environments.
Landfill & Waste Disposal: Serves as a filtration and drainage layer in landfill liners, separating waste from surrounding soil and guiding leachate for safe treatment.
Underground Construction: Ideal for subway, tunnel, and basement projects to drain groundwater, reduce moisture damage, and protect structural foundations.
Agricultural & Hydraulic Engineering: Used in irrigation systems, reservoir banks, and farmland drainage to improve water management and soil conditions.
Yingfan adheres to strict quality control standards to ensure product compliance with international norms. Our comprehensive QC system includes sampling inspections for every batch of products, with samples retained for 5 years for traceability. The geotextile is non-toxic, environmentally friendly, and free from harmful substances, posing no risk to soil, water, or ecosystems. Its stable performance under extreme conditions (high/low temperatures, humidity) further guarantees safety and reliability in critical projects.
Prepare the construction site: Ensure the ground is flat, free from sharp debris (rocks, glass) that could damage the geotextile.
Cut the geotextile: Use professional tools to cut the roll according to project dimensions, leaving a 10-15cm overlap for seaming.
Lay the geotextile: Unroll the product evenly, avoiding tension or wrinkles. Overlap adjacent rolls and secure with staples, pins, or seaming tape.
Compact and cover: After laying, lightly compact the geotextile and cover with soil, gravel, or other materials as required by the project design.
Regularly inspect the geotextile during and after construction for tears, punctures, or displacement.
Promptly repair any damage with compatible geotextile patches and seaming materials.
Avoid exposing the geotextile to direct UV radiation for extended periods before covering.
Prevent heavy machinery from driving directly on the uncovered geotextile to avoid mechanical damage.
We are a professional PET geotextile factory with years of production experience.
Yes. We have a complete QC system, and every batch of products undergoes strict sampling inspections, with samples retained for 5 years.
Absolutely. We offer custom geotextile production according to your specific requirements (size, weight, performance).
Yes, we offer free samples, but the freight cost is borne by the customer.
Generally 3-5 days for in-stock products; 10-15 days for customized orders (depending on quantity).
Ready to enhance your project's performance with high-quality 500g/m² PET Continuous Filament Drainage Geotextile? Contact us today via email or our official website to:
Request a free sample and technical datasheet.
Get a customized quote for your project needs.
Consult our engineering team for professional application advice.
Yingfan is committed to delivering reliable geosynthetic solutions—partner with us for on-time delivery, competitive pricing, and exceptional after-sales support!
