Premium Bentonite GCL Solutions – Engineered for Superior Hydraulic Barrier Performance
Classification Introduction
1. Customized Thickness & Strength: Adjust bentonite clay density (3680-6180g/sqm) and geotextile specifications to meet project-specific hydraulic conductivity (<1×10⁻¹¹ m/s) and shear strength requirements.
2. Global Certifications: CE, ISO 9001, ISO 14001, and ISO 45001 compliance ensures reliability for international projects.
3. Integrated Services: From design consultation to on-site installation support, we deliver end-to-end anti-seepage solutions.
Application

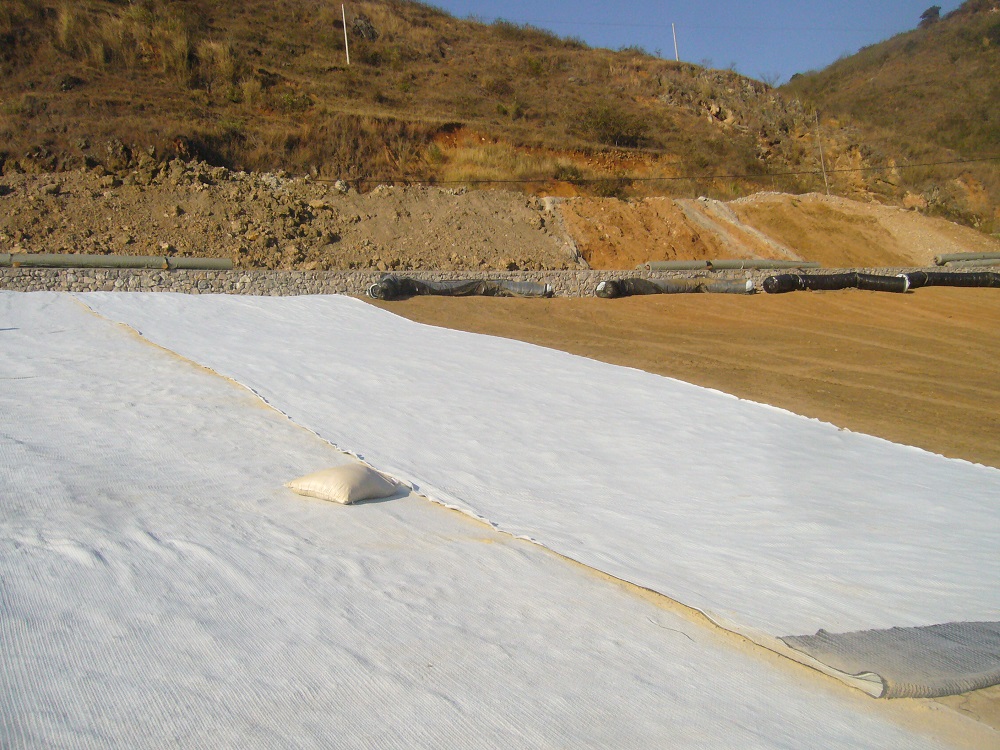

Landfill Liners & Caps
Prevent leachate migration and gas emissions in municipal/industrial waste containment systems.
Water Infrastructure
Canal liners, reservoir bases, and pond sealing for agricultural/industrial water management.
Transportation
Subgrade stabilization and erosion control in highways, railways, and airports.
Mining & Energy
Secondary containment for oil/gas facilities, tailings pond liners, and coal ash storage.
Product Advantage
Why Choose Yingfan Bentonite GCL?
Unmatched Hydraulic Performance
Sodium bentonite core swells to form a self-sealing barrier against liquids/gases.
Low permeability (<1×10⁻11 m/s) even under high hydraulic pressure.
Form high density diaphragm under hydraulic pressure, the water permeable capability equals to 100 times density degree of 30cm clay when the thickness of GCL is 3mm. It has very good self water-retention property.
←This test machine is called Sodium Bentonite GCL Permeability Tester
Durability & Sustainability
YINGFAN’s state-of-the-art needlepunching process interlocks the geotextiles, preventing the displacement of bentonite prior to, during, and after installation. The geotextiles provide superior protection from inclement weather and construction-related damage, without requiring to use a protection course. UV-stabilized geotextiles resist degradation in exposed applications.
Non-toxic, chemical-resistant bentonite ensures long-term environmental safety. GCL is nature inorganic material, it won't aging or corrode even after long-time or surrounding changed, so it has permanent water proofing capability.
GCL is also non-poisonous and harmless to human body, so it is environment protection material.

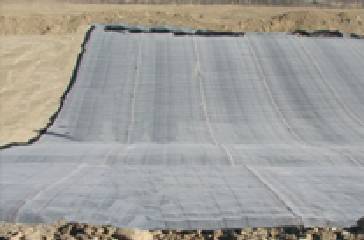

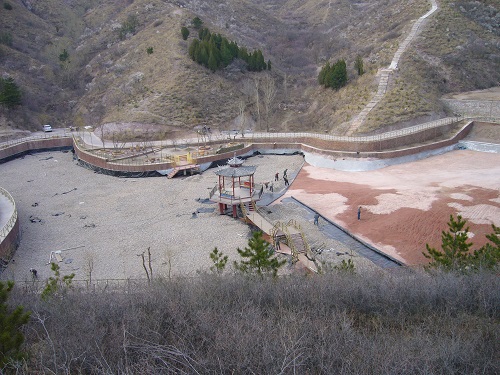

→This is the project which applied our bentonite GCL product to provide the erosion control fuction for the surrounding environment of an artificail landscape lake.
Cost-Effective Installation
GCL is designed to be installed on a properly prepared subgrade, without the need to pour a working slab. The product’s inherent flexibility allows for easy installation on irregular surfaces and rough property line forming. GCL can be installed as soon as the forms are stripped; there is no waiting for the concrete to cure.
Prefabricated rolls (for example size of 6m x 40m standard) enable rapid deployment with minimal on-site labor.
Compatible with overlapping or adhesive-seaming methods for seamless joints.
Since the late 1980s, GCLs have been specified and used by design engineers, agencies and owners as an alternative to soil barriers in various applications.

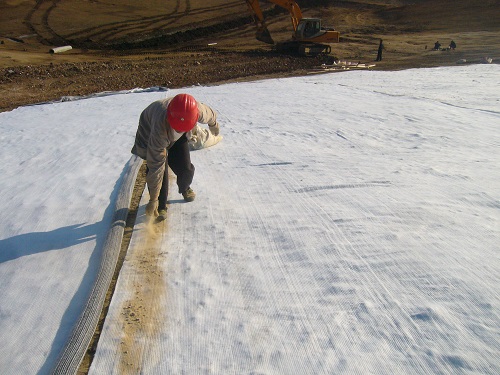

←This picture shows on-site lablors spray bentonite granular on overlapping area.
Related Blogs
-
When it comes to basement dampness, many people will remember it vividly, because people who have basements have been more or less troubled by the phenomenon of dampness on the ground and walls.Product News -
Geosynthetic clay liner is a new type of geosynthetic material. It is made of natural sodium bentonite, and the bentonite particles are fixed between two layers of geotextile to make a bentonite waterproofing blanket, which not only has all the characteristics of geotechnical materials but also has excellent waterproofing (permeability) properties.Product News -
Geosynthetic Clay Liners is a geosynthetic material specially used for Artificial lake water features, landfills, underground garages, pools, etc. to prevent seepage and leakage. How is the bentonite geosynthetic clay liner constructed when applied to Artificial lakes?Product News
Project Case

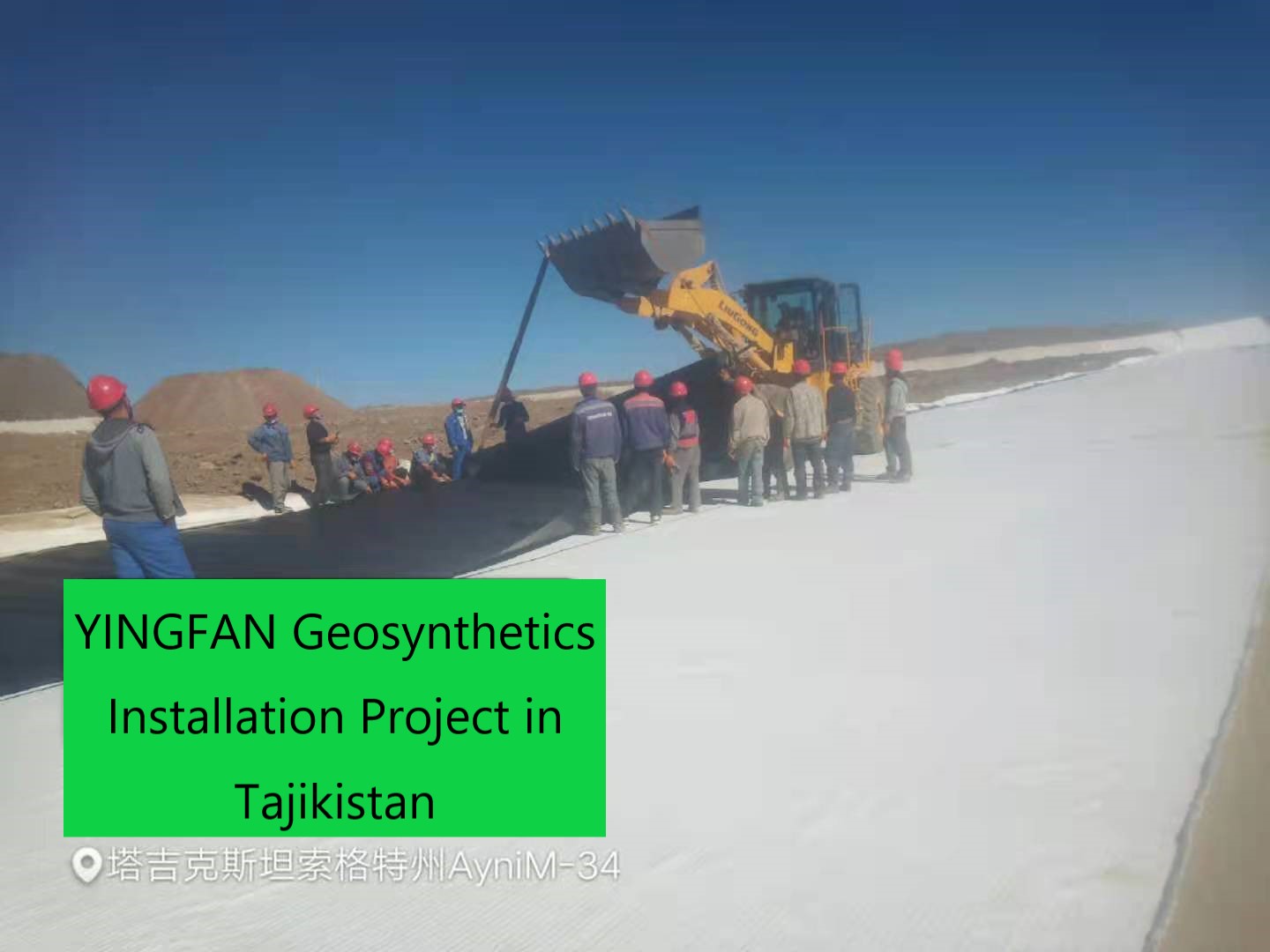

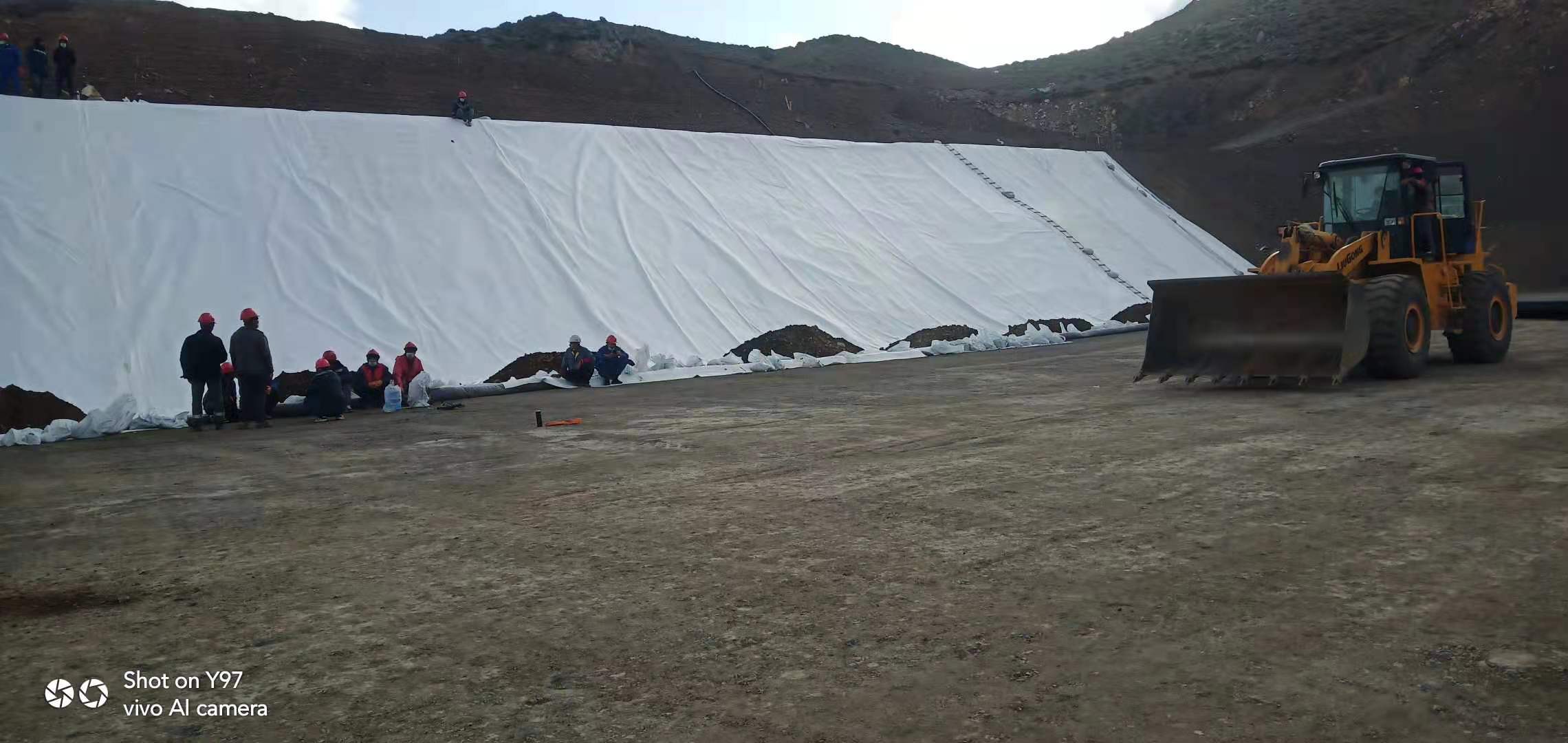

Yingfan Bentonite GCL products used in the flotation of oxidized ore in the Kumarg gold mine
Geographical location and scale: The project is located in a mountainous area about 130-150 kilometers north of the capital city of Dushanbe, Tajikistan. The mining area is rich in resources, with a proven gold reserve of about 78 tons and a prospective reserve of up to 150 tons, with a high average grade.
Project review: The Kumarg Gold Mine Oxidation Project in Tajikistan is an important gold mine development project located in the Kumarg area of Eni City, Tajikistan, with an altitude of approximately 3490 meters. This project is led by TBEA Dushanbe Mining Co., Ltd. and undertaken and operated by China Railway 19th Bureau International Co., Ltd., a subsidiary of China Railway Construction Corporation. It is one of the key projects of China Tajikistan cooperation.
Mining and process flow
Adopting a combination of open-pit mining and underground mining, in the initial stage, the main process is heap leaching of oxidized ore (the process flow is heap leaching carbon adsorption desorption electrolysis smelting), and later it shifts to mixed ore and primary ore flotation treatment, with the final product being alloy gold.
The immersion solution for gold is prepared by dripping cloth solution, and gold refining is carried out by chemical method to extract gold.
Critical Functions of Yingfan Geosynthetic Lining Products for Environment Impact
Our Yingfan products, bentonite GCL, HDPE geomembrane and polyester filament nonwoven geotextile, are used in the foundation area of oxidized ore flotation in order to construct a strong barrier or containment structure to isolate the prevention from this area, including hazards chemicals such as cyanide and mercury. These effects endanger local ecosystems and the health of communities dependant on these environments. After using our products, these effects will be greatly limited to zero effects.
Certification

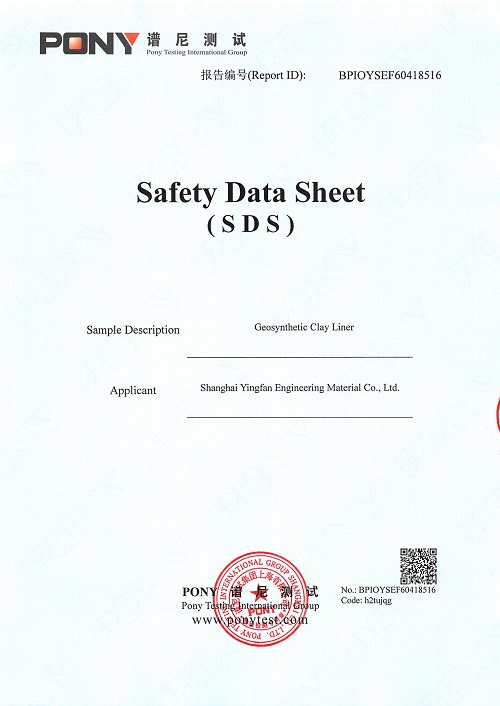

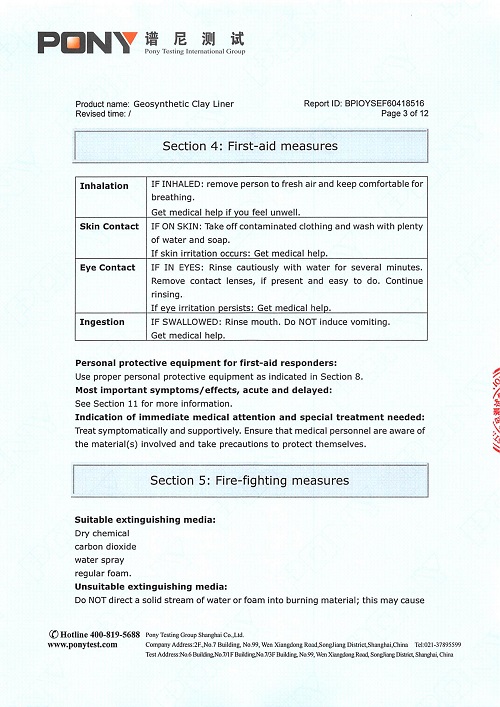

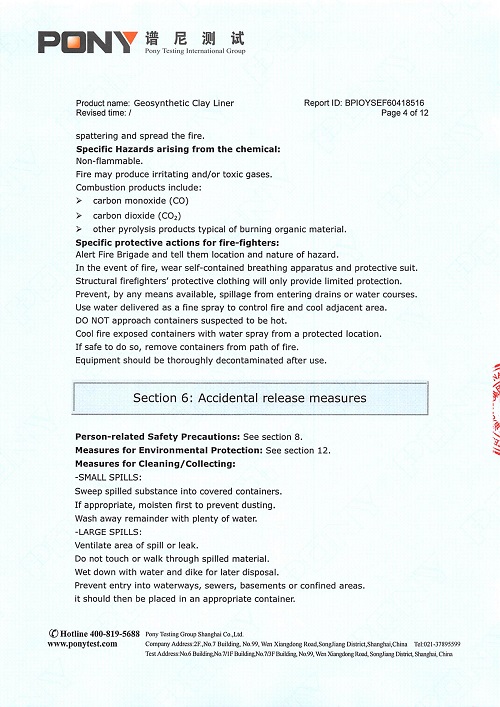

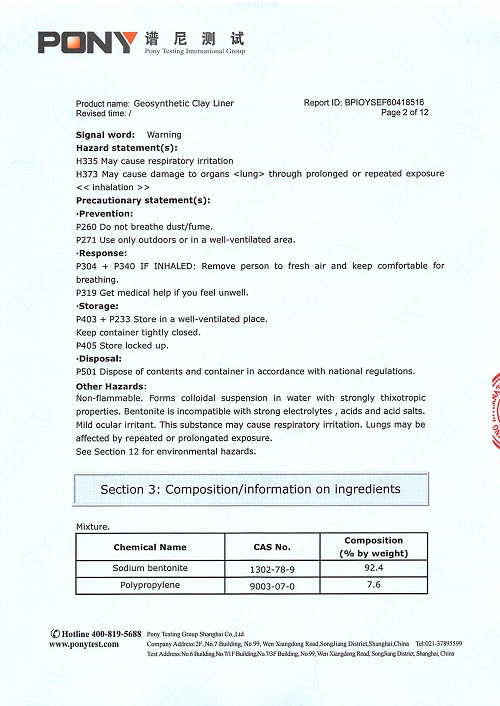

Safety data sheet (SDS) for Geosynthetic Clay Liner (GCL)
