100-400g/m2
Yingfan
Description:

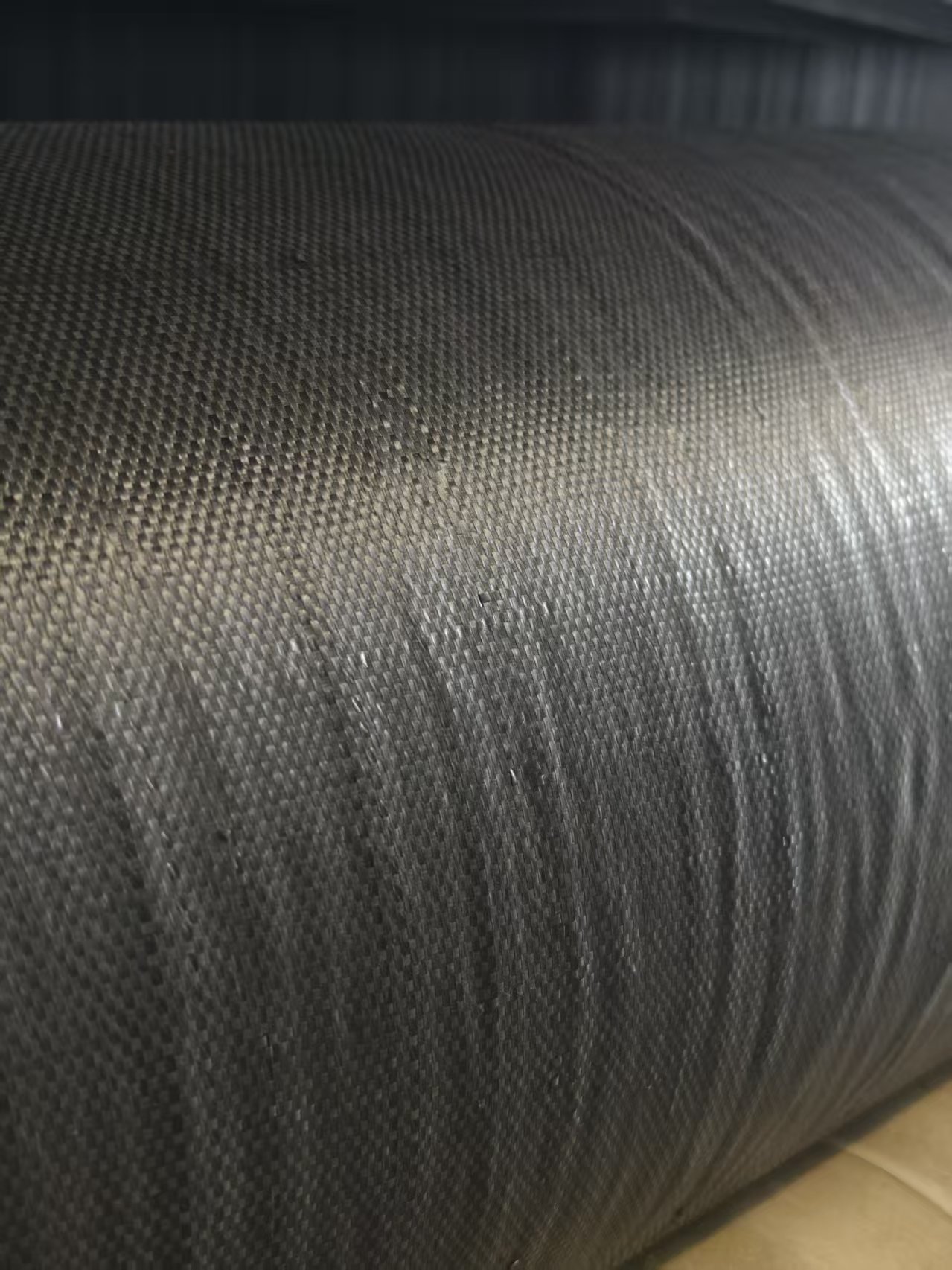

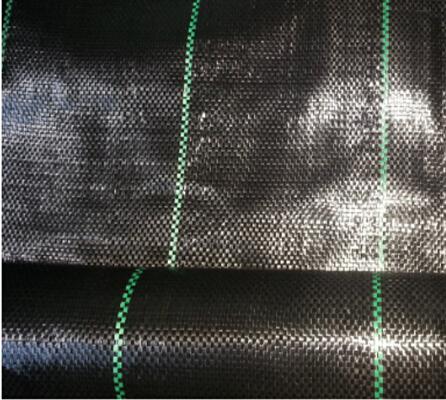

Yingfan supplied PP woven geotextile is plastic woven film yarn geotextile, created on large industrial looms that interlace horizontal and vertical threads to form a tight criss-cross or mesh. The flat threads are made by pp resin extrusion, splitting, stretching processing ways.
Property:
1 High in Strength
2 UV Resistant
3 Rot Resistant
4 Resists Biological Degradation
5 Chemically Inert
6 Increases the Life of your Roads
7 Strengthens and Supports Aggregates
Function:
Features:
1.It can effectively make the concentrated stress diffuse, transfer or decompound, and prevent the soil mass against the destruction of outside force.
2.It can prevent the mixture of sandstone, soil mass and concrete of upper and lower layers.
3.Its mesh is hard to jam by virtue of the compliancy and motility of the reticulation formed by indefinite form fibrous tissue.
4.High water permeability-it can keep good water permeability even in the pressure of soil and water.
5.Corrosion resistant-it is made from polypropylene fiber or terylene or other chemical fiber, featuring resistance to acid and alkali and oxidation, non-corroding, no worm-eaten.
6.Easy construction-low weight, easy operation, simple construction
Technical data sheet:
No. | Value SPE. | 20-15 | 30-22 | 40-28 | 50-35 | 60-42 | 80-56 | 100-70 | |||||
Item | |||||||||||||
1 | Longitudinal Strength kN/m ≥ | 20 | 30 | 40 | 50 | 60 | 80 | 100 | |||||
2 | Latitudinal Strength kN/m ≥ | 15 | 22 | 28 | 35 | 42 | 56 | 70 | |||||
3 | Tensile Strength Elongation % | 28 | |||||||||||
4 | Trapezoid Tear Strength (Cross direction), kN≥ | 0.3 | 0.45 | 0.5 | 0.6 | 0.75 | 1.0 | 1.2 | |||||
5 | Puncture Resistance，kN≥ | 1.6 | 2.4 | 3.2 | 4.0 | 4.8 | 6. 0 | 7.5 | |||||
6 | Vertical Permeability coefficient, cm/s ≥ | 10-1~10-4 | |||||||||||
7 | Equivalent opening size O95，mm | 0.08-0.5 | |||||||||||
8 | Unit Weight g/m2 | 120 | 160 | 200 | 240 | 280 | 340 | 400 | |||||
Weight Deviation | ±10% | ||||||||||||
9 | Anti-UV Resistance | As negotiated | |||||||||||
Package&Loading

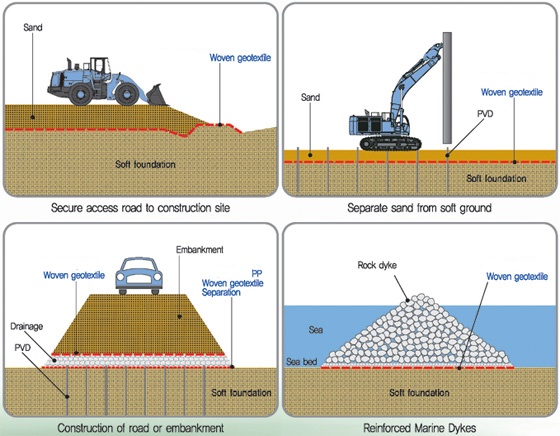

Applications
1 Used for heavy loads and soft soils due to the use of a high strength, high modulus stabilization fabric
2 Reduce localized shear failure in weak subsoil conditions and aid construction over soft subsoils
3 Reduce rutting in paved or unpaved surfaces
4 Used when both the strength and separation are needed
5 Asphalt overlay fabric
6 Used for shoreline rip rap application
7 Resists ultraviolet and biological deterioration, rotting, naturally encountered basics and acids
8 Stable within a PH range of 2 to 13
