Civil and commercial landscaping projects carry incredibly high stakes from day one. Using the wrong geotextile often leads to sudden subgrade failure. You might face clogged drainage systems and massive rework. Site managers experience severe delays when foundational materials fail unexpectedly. We know the pressure you face.
Woven fabrics do provide excellent sheer tensile reinforcement for specific ground stabilization needs. However, non woven geotextile fabric remains the true industry standard. It excels when your project requires both physical soil separation and high water permeability. It reliably handles dynamic subsurface conditions without blocking critical moisture movement.
This guide delivers a technical, evidence-based framework for your next infrastructure project. You will learn how to properly evaluate, specify, and source the correct materials. We cover specific applications for heavy roadbeds and complex drainage layouts. You can use this knowledge to ensure long-lasting structural integrity.
Application Dictates Spec: Drainage relies on Apparent Opening Size (AOS) and permittivity, while road separation prioritizes puncture resistance and grab tensile strength.
Material Matters: Polypropylene (PP) offers superior chemical resistance for varied soil pH, whereas Polyester (PET) provides higher creep resistance under specific continuous loads.
Weight is a Secondary Metric: Evaluate fabrics based on standardized AASHTO/ASTM testing metrics rather than relying solely on ounces per square yard (oz/sq yd).
Installation is the Ultimate Test: Even premium fabrics fail if overlap ratios and backfill procedures do not meet site-specific California Bearing Ratio (CBR) conditions.
Subgrade mixing silently destroys the load-bearing capacity of roads. Traffic pressure forces aggregate down into soft clay subgrades. Simultaneously, fine clay particles migrate upward into the clean stone base. This mixing action ruins the locking friction between stones. Your road essentially loses its structural skeleton. Unfiltered water flow creates similar disasters. It quickly clogs French drains and puts massive stress on retaining walls.
Let us examine the woven versus non-woven baseline to understand these failures.
Woven Geotextiles: They offer immense structural strength. Manufacturers weave individual threads together tightly. However, they feature very low permeability. They essentially create a restrictive water barrier over time. Water cannot escape efficiently.
Non-Woven Geotextiles: This is essentially a needle punched geotextile. It features a dense, felt-like structure. Needles punch synthetic fibers together randomly. This porous matrix allows high-volume water flow. It simultaneously retains surrounding soil particles perfectly.
True success relies on meeting specific criteria. You must select a fabric balancing water permittivity and mechanical strength. High permittivity prevents hazardous hydrostatic pressure buildup behind walls. Robust filtration prevents aggregate blinding. Blinding occurs when fine silts completely seal the stone voids. Your drainage system fails when blinding happens.
Material chemistry dictates long-term underground survival. You must evaluate the base polymer carefully. Let us look closely at Polypropylene and Polyester.
Polypropylene dominates the civil engineering landscape. It offers tremendous versatility.
Pros: PP resists biological degradation beautifully. Insects and soil microbes ignore it. It heavily resists extreme soil pH. It handles both highly alkaline and strongly acidic conditions safely. Generally, it is highly cost-effective for everyday projects.
Best for: You use it for standard road geotextile applications. It excels in residential and commercial French drains. Routine trench lining greatly benefits from PP usage.
Polyester serves specific, demanding structural roles. It shines under particular physical stresses.
Pros: PET delivers much higher resistance to creep. Creep means gradual deformation under long-term continuous stress. Heavy earth loads cause creep. PET also performs significantly better in high-temperature environments.
Limitations: PET remains highly susceptible to hydrolysis. You must avoid placing it in highly alkaline soils. Soil featuring a pH above 9 will degrade PET fibers rapidly. The material essentially breaks down chemically.
Always match the specific polymer type to your site's geotechnical soil report. You must consider environmental exposure expectations. A PP PET geotextile decision fundamentally impacts project survival. We strongly advise testing your native soil pH before finalizing any bulk purchase.
The industry suffers from a pervasive weight fallacy. Buyers often request "8 oz fabric" as a complete specification. This approach creates severe structural risks. Weight only measures material density per square yard. It never guarantees mechanical performance. You must evaluate standardized ASTM testing outcomes instead.
AOS determines the absolute largest soil particle passing through the fabric. Laboratories measure this using specific glass beads. You must size this parameter according to your native soil type. Finer surrounding soils require a physically smaller AOS rating. A mismatched AOS allows silt to wash right into your clean aggregate.
Permittivity measures the specific volume of water passing through the drainage geotextile. Engineers calculate this under a defined hydraulic head. This parameter is absolutely critical for high-flow trench drains. Low permittivity causes surface ponding. Water backs up because the fabric chokes the flow.
These metrics represent the lifeblood of a dedicated separation fabric. They dictate the material's actual survivability during harsh installation. Contractors routinely drop sharp, angular aggregate directly onto the laid fabric. Heavy machinery then aggressively compacts the stone. Low puncture resistance guarantees instant structural tearing.
Common ASTM Geotextile Testing Metrics | |||
Performance Metric | ASTM Standard | Primary Function | Project Impact Focus |
|---|---|---|---|
Apparent Opening Size | ASTM D4751 | Physical Filtration | Retains fine native soil particles |
Water Permittivity | ASTM D4491 | Hydraulic Flow | Prevents hazardous hydrostatic pressure |
Grab Tensile Strength | ASTM D4632 | Structural Integrity | Resists pulling forces during installation |
CBR Puncture Resistance | ASTM D6241 | Installation Survival | Prevents tearing from angular rock loads |
Every engineering scenario demands unique material properties. You cannot use a universal fabric for all site problems. We outline three distinct scenarios below. Review these practical recommendations to guide your specification process.
Scenario 1: Trench Drains and French Drains
Requirement: The site demands a consistently high water flow rate. It also needs a strict AOS to prevent long-term clogging. Silt intrusion will ruin the pipe network.
Recommendation: Select a lightweight to mid-weight non woven fabric. A 3 oz to 6 oz equivalent usually works best. Prioritize high permittivity over extreme tensile strength. The fabric faces minimal physical stress after burial.
Scenario 2: Driveway and Road Subgrade Separation
Requirement: You need maximum survivability during harsh installation. The project requires an impermeable separation barrier. This barrier separates wet subgrade clay from the top base rock layer.
Recommendation: Utilize a heavy-weight material. Look for a 6 oz to 8+ oz equivalent. You want maximum puncture resistance. The fabric must survive sharp rock drops and vibratory compaction rollers.
Scenario 3: Retaining Wall Behind-Fill Filtration
Requirement: You must prevent hydrostatic pressure buildup behind the wall. Concurrently, you must hold back all backfill fines. Dirt cannot wash through the wall face.
Recommendation: Choose a mid-weight fabric. Ensure it holds a carefully balanced AOS and flow rate. This balance guarantees long-term structural integrity. Wall failure often traces back to poor drainage fabric selection.
Field installation directly tests your planning phases. Even perfect fabric specifications fail under poor construction practices. You must monitor your contractors closely.

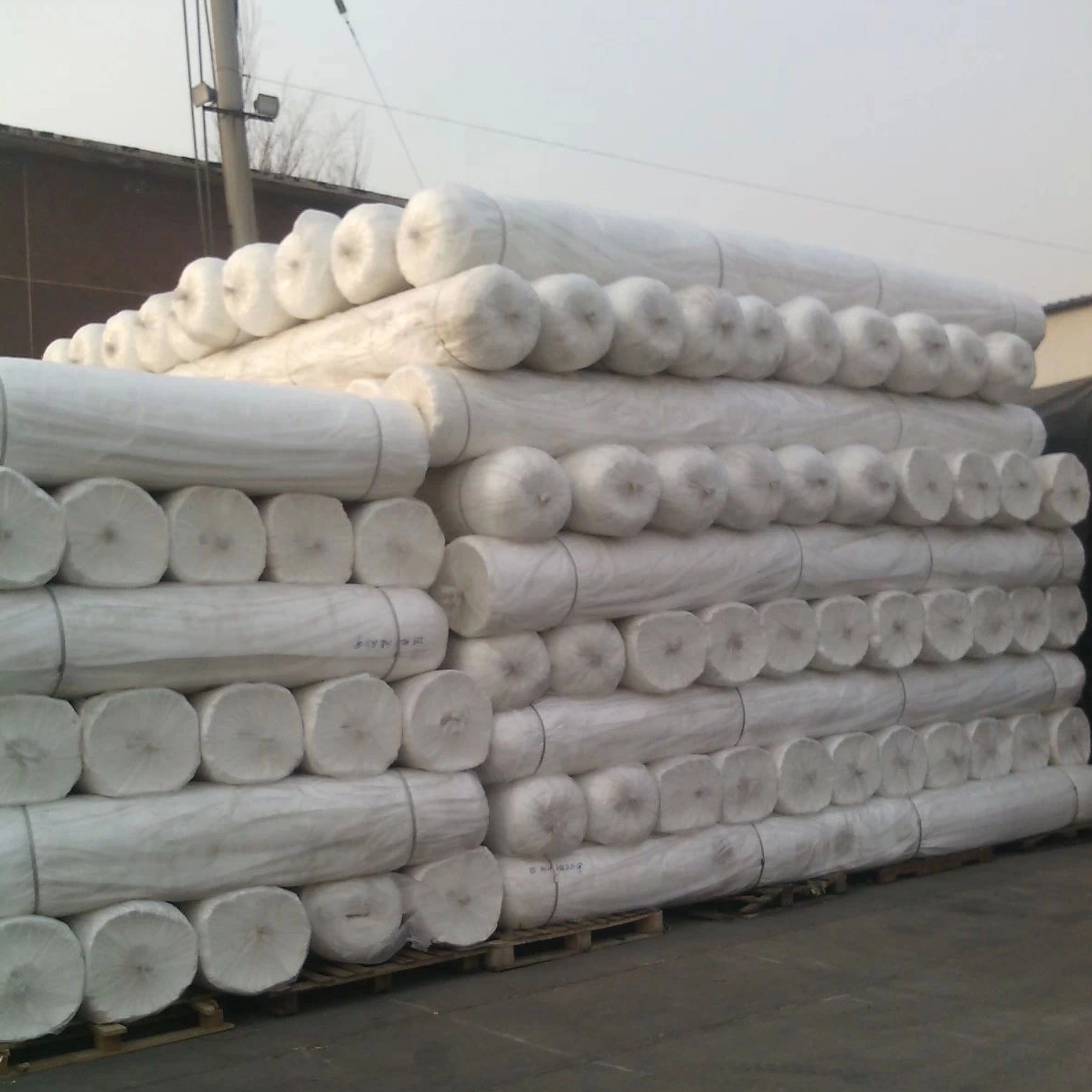

Polymer-based fabrics remain highly susceptible to UV breakdown. Direct sunlight weakens the fibers rapidly. You must aggressively limit exposure times on site. Typically, contractors must completely cover the fabric within 14 days of unrolling it. Prolonged exposure severely reduces the grab tensile strength. Store rolls under opaque tarps before deployment.
Correct overlapping prevents soil migration. Standard industry overlap is usually 12 to 18 inches. But soft subgrades create intense shifting risks. A low CBR (California Bearing Ratio) environment demands significantly more caution. You may require up to 36 inches of overlap in muddy conditions. Alternatively, you can use specialized sewn seams. Sewing wholly prevents panel separation during heavy compaction passes.
Dumping heavy, angular rock from too high causes immediate disaster. Plunging rock mass will puncture even the most heavy-duty fabrics. You should clearly specify strict drop height limits in your contractor guidelines. We recommend limiting rock drops to a maximum of three feet. Require operators to push rock gently over the fabric rather than bombing it from above.
Finally, ensure your selected material meets local DOT requirements. The Department of Transportation enforces rigid safety rules. Verify your chosen fabric passes AASHTO M 288 specifications. This standard guarantees adequate survivability and correct filtration properties for public roadwork. Skipping this verification leads to failed municipal inspections.
Choosing the right fabric requires precise technical alignment. You must align site soil conditions with verifiable ASTM metrics. Do not rely on casual weight classes. Water flow requirements and mechanical installation stress dictate your final choice. Proper specification prevents catastrophic structural failures.
We advise buyers to proactively request formal specification sheets from all suppliers. Verify full DOT compliance early for large commercial projects. You should always enforce strict UV protection and backfill rules on site. Lastly, always consult a licensed geotechnical engineer when facing highly complex or exceptionally soft subgrades.
A: No. Woven fabrics have poor permeability and will eventually clog or act as a barrier, causing the drain to fail. Always use a drainage geotextile (non-woven).
A: When properly installed, buried, and protected from UV light, high-quality PP PET geotextiles can last 50+ years.
A: A 4 oz fabric is typically used for standard drainage and light filtration, while an 8 oz fabric offers high puncture resistance needed for heavy-duty road separation under angular rock.
A: While it acts as a secondary barrier, its primary function is soil separation and stabilization, not weed control. Woven fabrics are generally better for pure weed barrier applications.
