Managing hydrostatic pressure remains critical. It dictates the long-term structural integrity of subterranean projects. Uncontrolled water accumulation against retaining walls causes rapid concrete degradation. You must implement robust systems to handle these continuous forces. Engineers increasingly replace traditional granular drainage layers. They specify high-mass geosynthetics instead. Modern solutions overcome severe space constraints. They accelerate installation and provide highly predictable flow rates.
However, deep and high-load applications pose extreme challenges. Standard commercial liners frequently fail under immense soil compression. This comprehensive guide breaks down exact specification methods. We will explore how you can evaluate and install these heavy-duty polymer systems. You will learn actionable strategies to prevent structural failures. Implementing these practices ensures resilient water management in extreme underground environments.
A 1000GSM specification provides the necessary compressive strength and void-maintenance required for deep-cover tunnels and heavy structural foundations.
Integrating a flat drainage liner reduces excavation volume and replaces high-cost imported aggregate while offering verifiable, consistent transmissivity.
Successful deployment relies on strict adherence to overlap protocols, compatibility with primary waterproofing systems, and managing long-term creep reduction factors.
Standardized testing (ASTM/ISO) for compressive behavior and in-plane flow rate must align with site-specific hydrostatic pressure calculations.
Deep underground structures face immense soil and hydrostatic pressures. These lateral forces easily crush lighter-weight materials. Using 400-600GSM dimpled or cuspated mats often leads to disaster. When the core crushes, you face total drainage failure. Sudden water ingress threatens the entire structural footprint. Fixing these failures requires impossible excavation efforts.

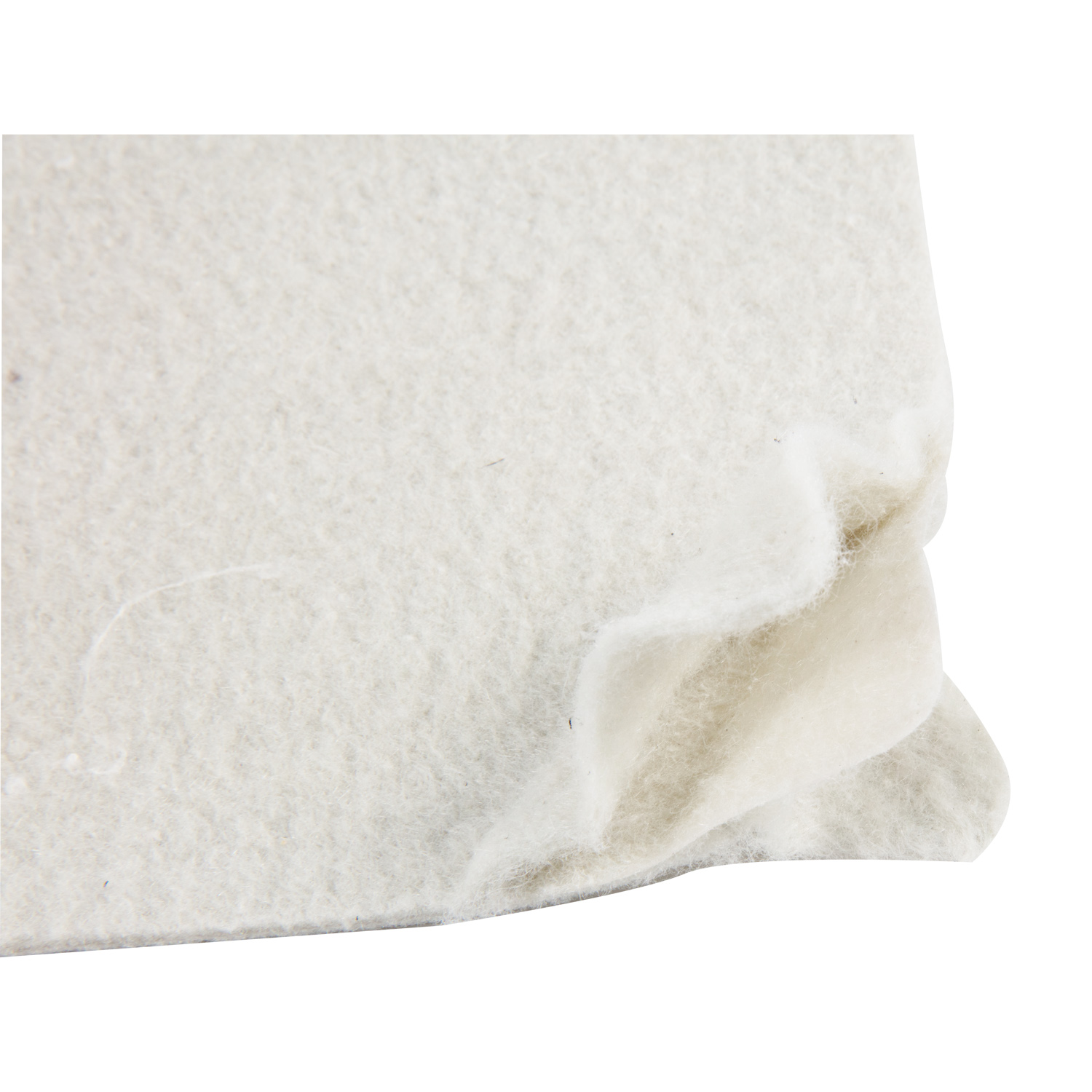

Understanding mass-per-unit-area (GSM) helps you predict core crush resistance. A 1000GSM flat drainage composite liner guarantees structural stability. It performs exceptionally well under heavy backfill. Heavy polymer cores resist long-term physical creep. They maintain critical void spaces over decades of constant pressure.
Engineers must choose between flat and dimpled profiles. A flat drainage liner offers superior load distribution. Dimpled sheets create intense high point loads. These localized stress points easily puncture adjacent waterproofing membranes. A flat structured geonet core distributes pressure evenly across the entire surface. This even distribution protects delicate sealing layers.
Economic evaluation strongly favors heavy-duty polymer solutions. You significantly reduce your project carbon footprint. A geosynthetic drainage layer eliminates hundreds of heavy truck deliveries. You avoid transporting and placing 300mm of washed drainage gravel. This substitution reduces initial excavation volume. It saves valuable time during the critical path schedule.
System Type | Load Distribution | Compressive Strength | Carbon Footprint Impact |
|---|---|---|---|
1000GSM Flat Liner | Even / Continuous | Very High (>1000 kPa) | Low (Minimal Transport) |
400GSM Dimpled Sheet | Point-loaded | Low to Moderate | Low (Minimal Transport) |
300mm Washed Gravel | Even | High | Very High (Heavy Trucking) |
Tunnel projects demand strict success criteria. You must relieve groundwater pressure behind the secondary lining. You must do this without compromising the primary waterproofing layer. Engineers also cannot reduce the functional tunnel cross-section. Space remains a premium commodity underground.
Deployment methods require extreme precision. Installation crews pin the tunnel drainage material directly to the primary excavated surface. This surface is usually irregular fresh shotcrete. You complete this fastening step before installing the impermeable membrane. Afterward, contractors pour the final concrete lining directly against the waterproofed assembly.
Engineers must evaluate several critical structural considerations before approval:
Radial Flow Capacity: Ensure the material handles calculated inflow rates. Match these anticipated rates to the specific local geology. Water must flow freely to the invert pipes.
Alkaline Environment Resistance: The polymer core must resist severe chemical degradation. Non-woven geotextiles face harsh exposure. Contact between polymers and fresh shotcrete creates a highly alkaline environment.
Mineral Clogging (Sintering): Calcium carbonate buildup frequently plagues tunnels. Mineral deposits quickly blind standard fabrics. Correct apparent opening size (AOS) mitigates this risk. The integrated geotextile must filter effectively without precipitating minerals.
Protecting commercial basements requires defined success criteria. You must prevent water accumulation against basement retaining walls. This proactive protection safeguards structural concrete reinforcement. It also secures the interior environment from harmful moisture intrusion. Damp environments cause mold and equipment failure.
Vertical deployment methods work best here. Install the system directly against the exterior waterproofing face. Secure the material carefully to avoid sagging. Terminate the foundation drainage at a functional French drain. You can also connect it to a perforated collector pipe at the footing. Proper termination ensures water exits the soil profile quickly.
Integration with existing waterproofing systems remains paramount. The flat profile prevents accidental puncturing. It stops abrasion against delicate bituminous coatings. Elastomeric waterproofing stays perfectly safe during heavy backfill compaction. You avoid creating secondary leak points.
Structures face constant dynamic loads underground. The material must handle active earth pressures continuously. It must accommodate natural building settlement over time. Furthermore, it absorbs live loads from adjacent surface traffic. It performs these mechanical functions over the entire life of the building.
Objective procurement criteria protect your investment. Buyers must know what data to demand. Always scrutinize manufacturers' Technical Data Sheets (TDS). Do not accept generic marketing claims. Insist on laboratory-certified testing metrics.
In-plane flow rate (transmissivity) dictates actual field performance. Testing must occur under site-specific confining pressures. Standard ASTM D4716 provides reliable methodology. Free-flow condition data does not reflect underground reality. Confined testing mimics the pressure of compacted soil.
Compressive strength data requires deep analysis. Demand standard 10,000-hour creep testing results. You must ensure the drainage composite liner maintains its internal void space. It cannot flatten over a 50-to-100-year design life. Creep reduction factors must apply to baseline strength numbers.
Geotextile filtration specs require a delicate balance. The filter fabric manages permeability to allow rapid water flow. Simultaneously, it provides vital soil retention. This dual mechanical action prevents fine particles from clogging the core. Properly specified fabric builds a natural soil filter cake.
Performance Metric | Relevant Standard | Testing Condition Requirements |
|---|---|---|
In-Plane Transmissivity | ASTM D4716 | Tested under project-specific confining pressure |
Compressive Creep | ASTM D7361 | 10,000-hour duration testing |
Apparent Opening Size | ASTM D4751 | Matched to local soil particle distribution |
Grab Tensile Strength | ASTM D4632 | Tested for survivability during installation |
Site condition prerequisites dictate your starting point. Surface preparation remains absolutely mandatory. Installation crews must remove sharp protrusions from excavation walls. Bare concrete surfaces require thorough smoothing. Protrusions act as knives against synthetic layers under heavy loads.
Seaming and overlaps demand strict attention from inspectors. Proper execution separates successful projects from failures.
Peel back the attached geotextile carefully to expose the core.
Interlock the exposed polymeric core panels securely together.
Tape or weld the fabric tightly over the joint.
Prevent all potential soil intrusion at the connection seams.
Risk Warning: Industry data reveals a harsh reality. Roughly 90% of geosynthetic drainage failures occur at improperly sealed joints. Soil migration into the core causes rapid, irreversible clogging.
Backfilling sequencing impacts final structural integrity. Follow strict guidelines for placing soil. Compact the backfill in measured lifts not exceeding 300mm. Never drag, tear, or crush the newly installed liner. Careless heavy machinery operation ruins expensive drainage systems instantly.
Storage and handling require dedicated protocols on site. Polymers face severe UV degradation risks from sunlight exposure. Keep all material rolls heavily wrapped in opaque plastic. Only expose them immediately before active installation. Store rolls flat to prevent core distortion.
Specifying a 1000GSM liner represents a calculated risk-management decision. Many environments make post-construction repair physically impossible. Upgrading your drainage specification averts economically ruinous structural failures down the road. High-mass polymer systems provide essential durability under extreme confining loads.
Base your final vendor selection on solid engineering evidence. Demand certified third-party testing conducted under loaded conditions. Verify project-specific flow calculations against proposed material transmissivity. Ensure warranty transparency before signing final procurement contracts.
Take actionable next steps immediately to protect your subterranean project. Consult an experienced geotechnical engineer today. Calculate site-specific load requirements accurately based on local soil data. Finally, request physical samples and project-specific TDS documents from your shortlisted suppliers.
A: It provides equivalent or superior water flow at a fraction of the thickness (e.g., 10mm vs. 300mm). This vastly reduces excavation costs and heavy truck traffic. You also gain predictable flow rates instead of relying on variable aggregate quality.
A: Yes. While ideal for vertical retaining walls and tunnel arches, its high compressive strength also makes it suitable for horizontal sub-slab foundation drainage. It resists the crushing weight of structural concrete slabs effectively.
A: When properly specified for the chemical environment and buried away from UV exposure, high-density polyethylene (HDPE) or polypropylene (PP) liners are designed to outlast the 50-to-120-year design life of the primary structure.
A: By strictly matching the geotextile's Apparent Opening Size (AOS) and permittivity to the particle size distribution of the surrounding native soil, ensuring a natural soil filter cake forms behind the fabric.
