In the field of geotechnical engineering, the need for reliable and durable barrier systems is critical to ensure the stability, safety, and environmental compliance of construction projects. One material that has gained widespread adoption is the bentonite geosynthetic clay liner (GCL). Bentonite GCLs combine the self-sealing and low-permeability properties of bentonite clay with the mechanical strength of geosynthetic materials, making them a cornerstone for hydraulic barriers, landfill liners, and other soil containment applications.
This article explores the performance evaluation of bentonite GCLs in geotechnical applications, highlighting their functional properties, installation considerations, evaluation methods, and their practical impact in civil and environmental engineering projects.

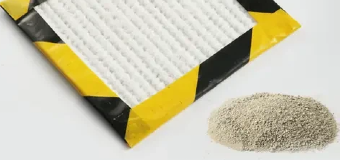

A bentonite geosynthetic clay liner (GCL) is a composite material that typically consists of a layer of sodium bentonite clay sandwiched between geotextiles or bonded to a geomembrane. When hydrated, bentonite swells and forms a low-permeability barrier, capable of preventing the migration of water or contaminants through soil layers.
The combination of flexibility, impermeability, and self-sealing properties makes GCLs ideal for geotechnical applications where hydraulic containment is necessary. Unlike traditional compacted clay liners, GCLs offer easier installation, uniform performance, and reduced maintenance requirements.
Low Hydraulic Conductivity: Ensures minimal fluid passage through the liner.
Self-Healing Capability: Swelling bentonite seals minor punctures or gaps.
Mechanical Strength: Geotextile layers provide resistance against tearing and puncture.
Chemical Compatibility: Maintains performance in the presence of industrial leachates, acidic or alkaline soils.
Ease of Installation: Lightweight and flexible sheets simplify construction on uneven or sloped terrain.
These properties make bentonite GCLs an essential material in geotechnical projects that require both structural stability and environmental protection.
One of the primary uses of bentonite GCLs in geotechnical engineering is as a liner system in landfills. Industrial and municipal landfills produce leachate, a contaminated liquid that can infiltrate soil and groundwater if left unmanaged. By installing a bentonite GCL, engineers create a reliable barrier that minimizes hydraulic conductivity and prevents contamination.
In composite liner systems, bentonite GCLs are often placed beneath geomembranes to enhance containment efficiency, combining the self-sealing properties of bentonite with the chemical resistance of polymeric liners. This integration ensures compliance with environmental regulations and protects surrounding ecosystems.
Bentonite GCLs are also used in hydraulic applications such as dams, reservoirs, canals, and containment ponds. In these structures, seepage control is vital to maintain structural integrity and prevent water loss. GCLs provide low-permeability layers that reduce water infiltration, complementing compacted clay or geomembrane liners.
Their flexibility allows engineers to install the liner on sloped or irregular surfaces, ensuring effective hydraulic performance even in challenging terrains.
In the mining industry, tailings contain chemicals and fine sediments that can pose environmental risks. Bentonite GCLs are employed in tailings storage facilities to create impermeable liners that prevent contaminated water from leaching into surrounding soils. The self-healing nature of bentonite clay ensures long-term effectiveness, even if minor installation damage occurs.
Geotechnical projects such as highway embankments, railway foundations, and bridge abutments also benefit from bentonite GCLs. The liners serve as separation and reinforcement layers, stabilizing subgrades and preventing the migration of fine soil particles. This reduces settlement, rutting, and other long-term structural issues.
Bentonite GCLs are increasingly applied in projects focused on environmental conservation, such as wetlands restoration, industrial wastewater containment, and soil remediation. Their low permeability and chemical resistance make them suitable for projects that require long-term containment of hazardous fluids or contaminants.
Hydraulic conductivity is a primary measure of GCL performance. Bentonite GCLs typically exhibit extremely low permeability, often in the range of 10^-9 to 10^-11 m/s, which ensures minimal fluid migration. Laboratory and field tests measure hydraulic conductivity under saturated conditions, confining pressure, and chemical exposure to ensure that the liner meets project-specific requirements.
Swelling capacity is a critical performance metric because hydration triggers self-sealing of the bentonite layer. The ability of the clay to swell and fill minor voids or punctures directly affects its containment effectiveness. Performance evaluation includes measuring swelling rate, maximum swell, and recovery after compression.
Mechanical strength assessment evaluates the geotextile layers for tensile, puncture, and tear resistance. These parameters determine the liner’s ability to withstand installation stresses, overburden pressure, and environmental load without failure.
Industrial projects often involve exposure to acids, bases, heavy metals, and organic solvents. Evaluating GCL performance under various chemical exposures ensures that hydraulic conductivity and swelling properties are not compromised over time. Laboratory tests simulate real-world exposure scenarios to validate long-term effectiveness.
Field monitoring and accelerated aging tests assess how bentonite GCLs perform under mechanical stress, freeze-thaw cycles, and chemical exposure over extended periods. Long-term durability ensures the liner maintains low permeability and structural integrity throughout the lifespan of the project.
Laboratory tests provide controlled conditions to measure hydraulic conductivity, swelling pressure, and mechanical strength. Standardized methods include the flexible wall permeameter test for permeability, triaxial compression tests for strength, and chemical immersion tests to assess stability in aggressive fluids.
Field performance evaluation involves monitoring the installed GCL under real-world conditions, such as landfill sites, tailings ponds, or embankments. Parameters include seepage rate, settlement, and liner integrity. Field observations complement laboratory data to ensure reliable performance in operational conditions.
Geotechnical engineers often use finite element modeling (FEM) and other simulation tools to predict GCL behavior under loading, hydration, and chemical exposure. This approach allows for risk assessment, design optimization, and performance verification before and during construction.
Sensors embedded in containment systems can monitor moisture content, pressure, and chemical composition, providing real-time feedback on GCL performance. These smart systems facilitate proactive maintenance and ensure compliance with environmental regulations.
The primary advantage of bentonite GCLs is the prevention of contaminant migration, protecting groundwater and soil from leachate, industrial effluents, and chemical spills. This ensures compliance with environmental standards and reduces ecological risks.
Compared to compacted clay liners, bentonite GCLs are lightweight, flexible, and easy to handle, reducing construction time and labor costs. Sheets can be rolled out on uneven surfaces, minimizing the need for extensive site preparation.
Although GCLs may have higher upfront material costs, they reduce long-term maintenance, remediation, and operational risks. Their durability and low permeability provide a high return on investment in industrial and environmental projects.
The swelling properties of bentonite clay ensure that minor punctures or imperfections in the liner are automatically sealed, enhancing reliability and long-term performance even in harsh operating conditions.
Cities worldwide have implemented bentonite GCLs to line municipal landfills, preventing leachate from contaminating groundwater. Performance evaluations show sustained low hydraulic conductivity even after years of service.
Mining operations in North America and Australia utilize GCLs to contain tailings. Field data indicates that bentonite GCLs reduce seepage rates significantly and maintain integrity under heavy overburden and fluctuating water levels.
Chemical plants in Europe and Asia employ bentonite GCLs for containment of acidic and alkaline effluents. Long-term monitoring demonstrates excellent chemical compatibility and self-healing capability, minimizing environmental risk.
Highway embankments and railway subgrades in Asia have integrated GCLs to stabilize soil layers and manage seepage. Observations confirm improved load distribution and reduced maintenance requirements over decades.
Modern projects often combine bentonite GCLs with geomembranes, drainage mats, or geotextiles to create multi-functional composite liners that enhance containment and mechanical performance.
New bentonite blends provide higher swelling capacity, improved chemical resistance, and reduced hydraulic conductivity, broadening the range of industrial applications.
Many GCL manufacturers are using recycled polymers and eco-friendly production methods, aligning with global sustainability initiatives and regulatory frameworks.
Integration of sensors and monitoring technologies allows engineers to track liner hydration, hydraulic performance, and chemical exposure, enabling predictive maintenance and ensuring compliance with environmental regulations.
Bentonite GCLs are a critical component in geotechnical engineering, providing low-permeability, self-healing, and chemically resistant barriers for industrial projects. Their applications span landfills, tailings dams, chemical storage, hydraulic engineering, and civil infrastructure. By evaluating performance through laboratory tests, field observations, and simulation, engineers can ensure effective leachate containment and long-term environmental protection.
For high-quality bentonite GCL products and technical guidance on industrial applications, contact Shanghai Yingfan Engineering Material Co., Ltd. Their geosynthetic solutions deliver reliability, durability, and compliance for a wide range of geotechnical projects.
Q: How does bentonite GCL prevent leachate contamination?
A: Bentonite swells upon hydration, forming a low-permeability barrier that stops leachate migration into soil and groundwater.
Q: What industrial projects use bentonite GCL?
A: Applications include municipal landfills, tailings dams, chemical storage facilities, and hydraulic containment systems.
Q: What properties are essential for GCL performance evaluation?
A: Key properties include hydraulic conductivity, swelling capacity, tensile and puncture strength, and chemical resistance.
Q: Can bentonite GCLs be combined with other materials?
A: Yes, composite liners integrate GCLs with geomembranes or geotextiles for enhanced containment and structural performance.
