| Tensile: | |
|---|---|
| Size: | |
20-1600kn/m
Yingfan
Product Introduction:

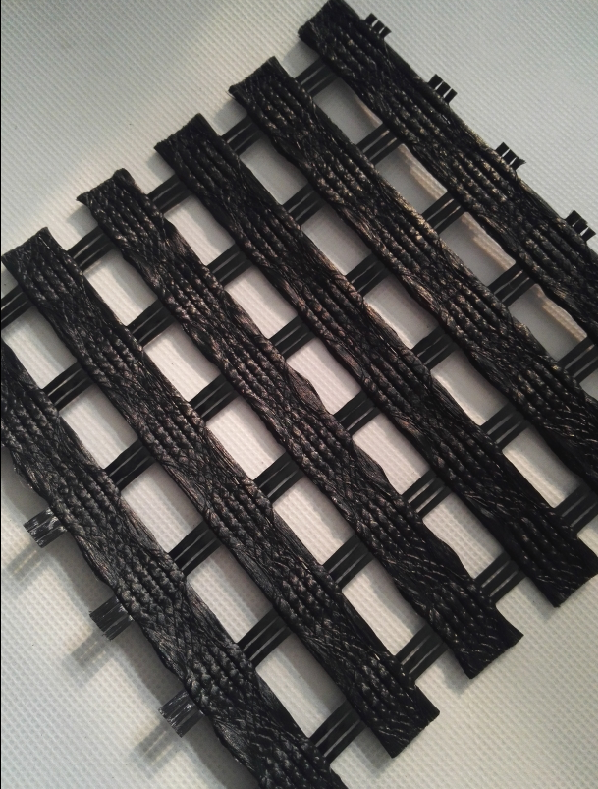

YINGFAN ultra high strength polyester geogrid is made of high molecular weight, high tenacity multi-filament polyester yarns. It has a PVC or Bituman or SBR coating which offers UV resistance and further strengthens the geogrid and minimizes fiber degradation. It is a precision warp-knitted geogrid that offers superior junction strength and a high coefficient of soil interaction. We can supply a wide range of standard tensile strengths of between 20kN/m and 1600kN/m
Applications
1 Retaining walls
2 Steepened slopes
3 Site access roads and transport routes
4 Structural layers supporting road, railway and airport construction
5 Embankments over piles/soft soils
6 Waste containment applications
Technical Parameters :

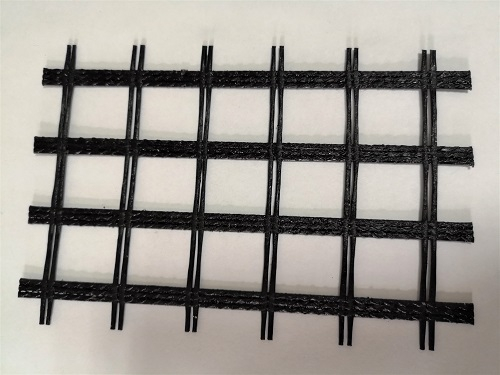

Polyester Uniaxial Geogrid | |||||||||||
Item | Test Method | Unit | Technical data | ||||||||
Material | PET coated with PVC or Bitumn | ||||||||||
Spec | UX30 | UX50 | UX100 | UX200 | UX400 | UX600 | UX800 | UX1000 | UX1200 | ||
Tensile Strength MD | ASTM D6637 | kN/m | 60 | 80 | 100 | 150 | 200 | 400 | 600 | 1000 | 1200 |
Tensile Strength CD | ASTM D6637 | kN/m | 30 | 30 | 30 | 30 | 50 | 50 | 50 | 100 | 100 |
Elongation MD/CD | ASTM D6637 | % | 10, 11, 12, 13, 15 | ||||||||
Aperture Size | mm | 17 x 17, 25 x 25, 30 x 30, 40 x 40, 50 x 50 | |||||||||
Roll Size | m * m | 5.2m x 100m or 200m or as request, maximum 5m W, typical 5.2m/5.9 W | |||||||||

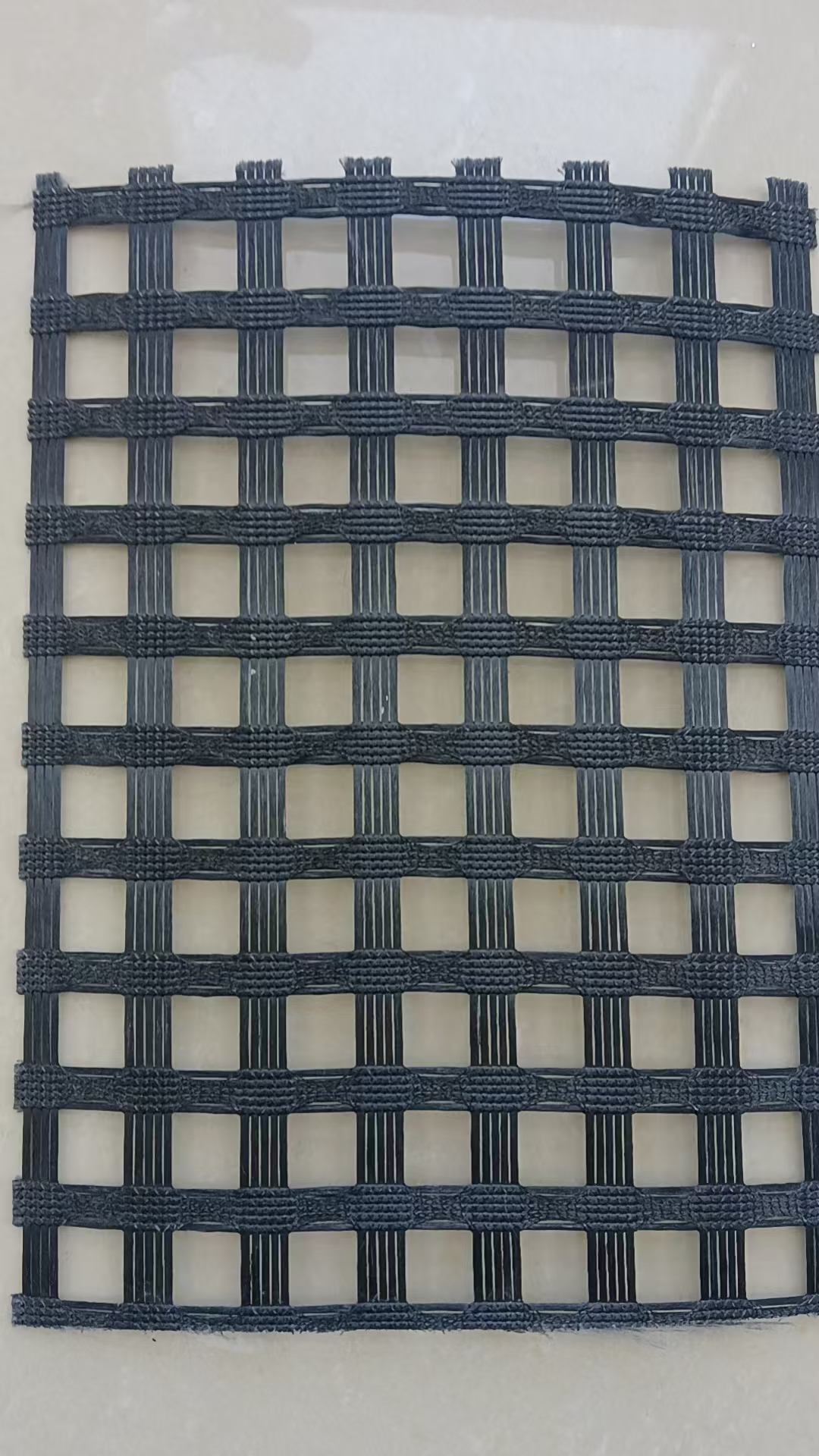

Polyester Biaxial Geogrid | |||||||||||
Item | Test Method | Unit | Technical data | ||||||||
Material | PET coated with PVC or Bitumen | ||||||||||
Spec | BX30 | BX50 | BX100 | BX200 | BX400 | BX600 | BX800 | BX1000 | BX1200 | ||
Tensile Strength MD | ASTM D6637 | kN/m | 30 | 50 | 100 | 200 | 400 | 600 | 800 | 1000 | 1200 |
Tensile Strength CD | ASTM D6637 | kN/m | 30 | 50 | 100 | 200 | 400 | 600 | 800 | 1000 | 1200 |
Elongation MD/CD | ASTM D6637 | % | 10, 11, 12, 13, 15 | ||||||||
Aperture Size mm | mm | 17 x 17, 25 x 25, 30 x 30, 40 x 40, 50 x 50 | |||||||||
Roll Size m * m | m * m | 5.2m x 100m or 200m or as request, maximum 5m W, typical 5.2m/5.9 W | |||||||||
FAQ:
A: Yes, it is our pleasure to send free samples for checking quality and just undertake the freight charge by yourself.
Q:What is the lead time for samples?
A: Current sample need 1 day, customized samples need 5-7 days,
Q:What express do you use to send the samples?
A: We usually ship samples by DHL, TNT, FEDEX and UPS. It usually takes 3-5 days to arrive.
Q:What is the payment terms?
A: Our usual payment term is T/T and L/C . Others could be negotiated.
Q:Can you produce as my drawing?
A:Yes, we can customized for you based on your drawing or sizes.
Q:How about the delivery time?
A:Usually production time is 10-15 days. It will be decided by the order quantity.
