In civil engineering, ensuring the structural stability of infrastructure is paramount. Roads, highways, slopes, retaining walls, and embankments all rely on the stability of underlying soils to perform safely and efficiently. Soil, however, is a natural material prone to deformation, settlement, and erosion, which can lead to costly structural failures. To address these challenges, engineers increasingly utilize geogrids, advanced geosynthetic materials designed to reinforce soil, improve load distribution, and prevent structural failures in various construction projects.
This comprehensive article examines how geogrids reinforce soil, their mechanisms, applications, performance evaluation, installation advantages, economic and environmental benefits, and emerging trends in civil engineering.
Traditionally, soil reinforcement relied on compacted earth, stone, or gravel layers. While these methods provided basic stability, they were often insufficient for modern roadways, heavy industrial pavements, and steep slopes, especially in areas with weak or expansive soils.
The development of geosynthetics in the late 20th century revolutionized civil engineering. Geogrids, introduced as specialized geosynthetics, combined tensile strength with soil interlocking capabilities, enabling engineers to construct roads and slopes that were more stable, durable, and cost-effective than ever before.
Geogrids emerged in response to the limitations of traditional reinforcement techniques. Their open-grid design allows soil or aggregate to penetrate and interlock with the polymer lattice, creating a composite soil-geogrid system. This innovation dramatically improved the ability to prevent settlement, reduce lateral soil displacement, and extend the lifespan of civil infrastructure.

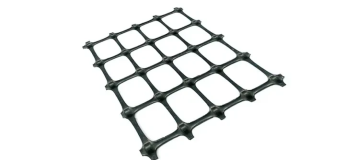

A geogrid is a geosynthetic material made from polymers such as polypropylene (PP), high-density polyethylene (HDPE), or polyester (PET). The open lattice design allows soil or aggregate to interlock with the geogrid, enhancing the composite system’s tensile strength and load distribution capacity.
Geogrids are typically manufactured using:
Extrusion: Produces rigid or semi-rigid grids with uniform apertures.
Knitting or weaving: Produces flexible geogrids that conform to uneven terrains.
Punching and stretching: Produces biaxial or triaxial geogrids for high-performance applications.
High Tensile Strength: Ensures soil reinforcement under heavy loads.
Flexibility: Adapts to slopes, irregular subgrades, and embankments.
Durability: Resistant to UV exposure, chemical degradation, and environmental stress.
Soil Interlocking: Enhances stability and prevents lateral soil movement.
Ease of Installation: Lightweight, rolled for efficient deployment, and adaptable to site conditions.
Geogrids reinforce soil primarily through interlocking. Soil particles penetrate the apertures of the geogrid, creating frictional resistance that increases tensile strength and shear resistance. This composite effect reduces lateral displacement and prevents structural failures.
Geogrids distribute applied loads across a broader soil area, minimizing localized stress and preventing settlement. This is particularly important in roadways and industrial pavements, where repetitive traffic loads can otherwise cause deformation.
By confining soil within the geogrid lattice, the soil’s shear strength increases, stabilizing slopes and embankments. This confinement prevents soil slippage, reduces erosion, and enhances overall stability under varying environmental conditions.
Differential settlement occurs when some soil areas compress more than others, causing cracks and structural damage. Geogrids mitigate this by stabilizing the subgrade and distributing loads, ensuring uniform settlement and maintaining structural integrity.
Uniaxial geogrids provide tensile strength primarily in one direction. They are ideal for retaining walls and steep slopes, where reinforcement is needed along a single axis.
Advantages:
High load-bearing capacity along the primary axis
Cost-effective for wall reinforcement
Suitable for confined soil applications
Biaxial geogrids provide tensile strength in two perpendicular directions, making them suitable for roads, embankments, and railways. They improve load distribution in both lateral and longitudinal directions.
Advantages:
Multi-directional reinforcement
Suitable for high-traffic roads and pavements
Reduces subgrade deformation
Triaxial geogrids form a triangular mesh, offering reinforcement in three directions. They are used in high-load applications like highways, airport runways, and industrial embankments.
Advantages:
Superior load distribution
Increased durability under heavy loads
Effective in weak or expansive soils
Soft or weak subgrades often lead to rutting, cracking, and uneven pavement. Geogrids reinforce subgrades, providing load distribution and lateral confinement, reducing settlement and extending road lifespan.
By preventing subgrade deformation, geogrids prolong the functional life of pavements, reducing the need for frequent maintenance and repairs.
Industrial areas with high machinery loads benefit from geogrids, which stabilize the soil and maintain pavement integrity even under repeated heavy loads.
Runways require high load-bearing capacity and stability. Geogrids enhance subgrade reinforcement and drainage, preventing differential settlement and ensuring safe aircraft operations.
Slopes are prone to landslides and erosion, especially during heavy rainfall. Geogrids stabilize soil layers, increase shear strength, and prevent lateral soil movement.
In retaining walls, geogrids reinforce backfill soil, reducing lateral pressure and improving wall stability. They enable the construction of taller and steeper walls without excessive structural material.
Geogrids prevent surface erosion by stabilizing soil and supporting vegetation. When combined with erosion control blankets or riprap, geogrids create durable slope stabilization systems.
Geogrids enhance slope safety in landslide-prone regions by increasing soil cohesion and interlocking, mitigating the risk of catastrophic failures.
Tensile testing ensures geogrids can withstand applied loads without failure, which is essential for road subgrades, slopes, and retaining structures.
Pull-out resistance measures how well geogrids interact with soil particles. Higher resistance indicates strong reinforcement and reduced soil movement.
Geogrids improve soil shear strength, preventing slope failure and settlement. Laboratory and field tests confirm enhanced stability in reinforced areas.
Geogrids must resist UV exposure, chemical attack, and environmental degradation. Performance evaluation ensures long-term soil reinforcement and structural integrity.
Different soils (clay, silt, sand, gravel) interact differently with geogrids. Evaluating soil-geogrid compatibility ensures effective reinforcement and load distribution.
Geogrids are lightweight and rolled, allowing rapid deployment over large areas or difficult terrain.
They can be combined with geotextiles, drainage layers, or geocomposites, creating integrated soil reinforcement and water management systems.
Using geogrids decreases the need for thick aggregate layers, accelerating construction while maintaining stability.
Geogrids conform to uneven subgrades, slopes, and embankments, making them versatile for diverse civil engineering projects.
Geogrids reduce aggregate, structural fill, and maintenance costs, offering a high return on investment for roads, slopes, and industrial sites.
Enhanced soil reinforcement minimizes rutting, settlement, and erosion, reducing long-term maintenance.
Geogrids support eco-friendly construction, reducing material use and environmental impact. Many are produced from recycled polymers.
Geogrids are applicable in various terrains and projects, from highways and railways to industrial pavements and slope stabilization.
Modern geogrids are integrated with geotextiles, drainage cores, and geomembranes, combining reinforcement and water management in a single system.
Sensors in geogrid-reinforced structures allow real-time monitoring of soil movement, load stress, and slope stability.
New polymers and manufacturing processes improve tensile strength, UV resistance, and chemical stability, extending geogrid applications in challenging environments.
Eco-friendly geogrid manufacturing and recycled materials reduce environmental impact while maintaining performance standards.
Geogrids are a critical solution for reinforcing soil and preventing structural failures in road construction, slope stabilization, retaining walls, embankments, and industrial pavements. Their ability to interlock with soil, distribute loads, enhance shear strength, and resist environmental degradation makes them a cost-effective, durable, and sustainable option for civil engineering projects.
For professional-grade geogrids and technical guidance on industrial applications, contact Shanghai Yingfan Engineering Material Co., Ltd. Our geogrid products provide reliable, high-performance reinforcement solutions for roads, slopes, and geotechnical infrastructure.
Q: How do geogrids reinforce soil?
A: Geogrids interlock with soil particles, increasing shear strength and preventing lateral movement.
Q: Which geogrid types are used for roads and slopes?
A: Uniaxial geogrids for retaining walls, biaxial for roads and embankments, triaxial for high-load areas.
Q: Can geogrids reduce aggregate or fill thickness in roads?
A: Yes, they distribute loads efficiently, allowing thinner layers while maintaining stability.
Q: Are geogrids environmentally sustainable?
A: Yes, they reduce material consumption, extend infrastructure life, and can be produced from recycled polymers.
