The cost of an HDPE liner is not a single fixed number because material thickness, resin quality, surface finish, roll size, order quantity, manufacturing standard, shipping distance, and installation requirements all affect the final price. In most pond, reservoir, aquaculture, landfill, mining, and wastewater containment projects, the HDPE liner price is calculated by square meter, roll, or total project area. A realistic budget should include not only the HDPE liner material cost, but also welding, site preparation, seam testing, protection layers, transportation, and installation loss.
● HDPE liner price depends mainly on thickness and raw material quality.
● Smooth HDPE liner is usually more economical than textured liner.
● Thicker HDPE liner costs more but offers stronger durability.
● Large orders usually reduce the unit price per square meter.
● Installation, welding, testing, and freight affect total project cost.
● The best HDPE liner option should match the application risk level.
The HDPE liner cost per square meter usually increases as thickness increases, because thicker material requires more resin and longer production control. Thin HDPE liner may be suitable for small ponds or short-term containment, while heavy-duty HDPE liner is commonly used in landfill, mining, wastewater, and industrial projects. Actual pricing should be confirmed according to raw material grade, project specification, production standard, and delivery location.

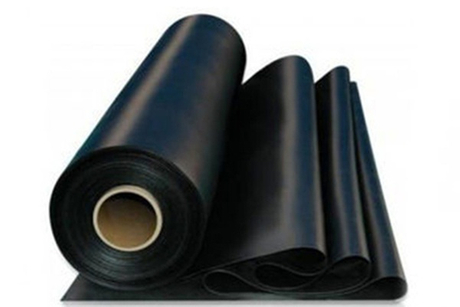

An HDPE liner roll price is normally calculated by multiplying roll width, roll length, and unit price per square meter. Wider rolls can reduce the number of field seams, but they may require stronger handling equipment and higher transportation planning. Standard HDPE liner roll dimensions often provide better cost control than highly customized roll sizes.
The total project cost is higher than the material price because HDPE liner installation usually involves subgrade preparation, deployment, welding, seam testing, repair, and anchoring. For containment projects with strict leakage control, quality assurance and welding records may also increase the total budget. A complete HDPE liner quotation should separate material cost, freight cost, installation cost, and optional technical service cost.
HDPE Liner Thickness | Common Application | Relative Price Level | Main Cost Consideration |
0.5 mm | Small fish ponds, temporary water storage | Low | Lower puncture resistance |
0.75 mm | Aquaculture ponds, irrigation ponds | Low to medium | Balanced cost and performance |
1.0 mm | Reservoirs, farm ponds, wastewater ponds | Medium | Better durability and weldability |
1.5 mm | Landfills, mining ponds, industrial containment | Medium to high | Stronger containment performance |
2.0 mm | Heavy-duty environmental projects | High | Higher material and installation cost |
Raw material quality has a direct effect on HDPE liner performance, service life, and price stability. Virgin resin, carbon black, antioxidants, and UV stabilizers usually increase the cost but improve long-term resistance to aging and environmental stress. Low-grade or heavily recycled material may reduce the initial HDPE liner price, but it can increase leakage risk and replacement cost.
Thickness is one of the strongest cost drivers because every additional millimeter increases resin consumption and roll weight. A 1.5 mm HDPE liner usually costs more than a 0.75 mm HDPE liner, but it provides better puncture resistance and stronger long-term containment reliability. Project selection should consider water depth, soil condition, chemical exposure, installation method, and design life.
Smooth HDPE liner is commonly used for ponds, reservoirs, aquaculture basins, irrigation ponds, and general water containment because it is economical and easy to weld. Textured HDPE liner usually costs more because the production process is more complex and the surface provides higher interface friction. Steep slopes, landfill cells, and mining containment areas may require textured HDPE liner to reduce sliding risk.
Roll size affects production efficiency, shipping cost, seam quantity, and installation speed. Large orders of standard HDPE liner specifications usually reduce the unit price because production and logistics can be arranged more efficiently. Small customized orders may have higher unit costs due to setup, cutting, packaging, and handling requirements.
Price Factor | Impact on HDPE Liner Price | Typical Project Effect |
Raw material grade | High | Better durability and aging resistance |
Thickness | Very high | Higher strength and higher material cost |
Surface texture | Medium to high | Textured surface increases cost |
Roll size | Medium | Larger rolls reduce seams but affect handling |
Order quantity | High | Bulk orders reduce unit cost |
Manufacturing standard | Medium | Certified quality increases reliability |
Freight distance | Medium to high | Long-distance delivery increases landed cost |
Installation requirement | High | Welding, testing, and labor affect total cost |
Pond and reservoir projects often require HDPE liner material that balances waterproofing performance, installation convenience, and budget control. Smooth HDPE liner is widely selected for farm ponds, irrigation reservoirs, rainwater storage, and landscape water containment. The final cost depends on pond area, slope design, overlap loss, anchoring method, and whether geotextile protection is required.
Aquaculture projects use HDPE liner to reduce seepage, stabilize water levels, and create a cleaner pond bottom. The selected HDPE liner thickness should match fish or shrimp farming intensity, cleaning frequency, and pond operation cycle. A low initial price may not be suitable if the liner must withstand frequent drainage, mechanical cleaning, or long-term sunlight exposure.
Landfill, mining, and wastewater containment projects usually require thicker HDPE liner because leakage consequences are more serious. These applications may involve chemicals, leachate, tailings solution, industrial wastewater, or contaminated runoff, so material quality and seam reliability become major cost considerations. The HDPE liner budget in these projects should include welding inspection, documentation, repair control, and long-term containment performance.
A stable subgrade is essential before placing an HDPE liner, because sharp stones, roots, debris, and uneven soil can damage the membrane. Site preparation may include grading, compaction, removal of sharp objects, drainage control, and construction of anchor trenches. If the soil is rough or angular, a geotextile cushion may be required beneath the HDPE liner.
Most engineering HDPE liner projects require thermal welding rather than glue, tape, or loose overlapping. Hot wedge welding is commonly used for long straight seams, while extrusion welding is used around pipes, corners, patches, and details. Welding cost depends on seam length, liner thickness, weather conditions, equipment availability, and installer skill.
Seam testing is a key part of HDPE liner installation because even small defects can become leakage paths under water pressure. Air pressure testing, vacuum box testing, spark testing, and visual inspection may be used depending on seam type and project specification. Quality control cost is especially important for wastewater lagoons, landfill cells, mining ponds, and industrial containment basins.
Installation Item | Cost Influence | Notes |
Subgrade preparation | Medium to high | Poor ground conditions increase preparation work |
Geotextile cushion | Medium | Often used to protect HDPE liner from puncture |
Welding labor | High | Depends on seam length and project complexity |
Seam testing | Medium | Required for reliable containment performance |
Anchor trench | Medium | Prevents movement at slopes and edges |
Equipment handling | Medium | Larger rolls may need machinery |
Repair and rework | Variable | Increases when layout or welding control is poor |
Choosing the right HDPE liner thickness is the most practical way to control cost without sacrificing project safety. A small irrigation pond may not need the same HDPE liner thickness as a landfill or mining containment pond. Over-specification increases the purchase cost, while under-specification can lead to punctures, leakage, and early replacement.
Standard HDPE liner roll sizes are usually easier to manufacture, package, ship, and install. Custom roll sizes may reduce cutting in some cases, but they can also increase production and logistics complexity. A well-planned panel layout can reduce seam quantity, minimize waste, and improve installation efficiency.
An accurate HDPE liner quote requires project area, thickness, application type, surface type, roll size, delivery destination, and installation requirements. Without these details, the quoted price may only reflect a general material estimate rather than the actual landed project cost. Clear technical information allows the manufacturer to recommend a suitable HDPE liner specification and avoid unnecessary cost changes.
HDPE liner is generally stiffer and offers strong chemical resistance, which makes it suitable for many containment projects. LLDPE liner is more flexible and may be easier to fit over irregular subgrades, but it is not always the first option for high chemical resistance requirements. The price comparison depends on thickness, resin grade, flexibility demand, and project design.
PVC liner is flexible and easy to shape, but plasticizer migration and long-term weathering may be concerns in some exposed applications. HDPE liner is widely used in engineered containment because it offers strong UV resistance, chemical resistance, and weldable seam performance. For large ponds, reservoirs, and industrial applications, HDPE liner often provides a strong balance between cost and durability.
EPDM liner is common in decorative ponds and landscaping because of its flexibility. HDPE liner is more common in large-scale containment, aquaculture, landfill, mining, and wastewater projects where welding and chemical resistance are important. EPDM may have a higher material cost in some cases, while HDPE liner can be more cost-effective for large-area engineering use.
The first step is to calculate the total lined area, including pond bottom, side slopes, overlaps, anchor trenches, and installation loss. An HDPE liner project that ignores slope area often underestimates the required material quantity. A clear layout allows better roll planning and reduces waste during installation.
The selected HDPE liner thickness should match project risk, soil condition, water depth, and service life requirements. Smooth HDPE liner is often suitable for pond and reservoir lining, while textured HDPE liner may be needed on steep slopes or high-friction interfaces. Surface choice directly affects both material price and installation strategy.
Freight cost can change the final HDPE liner price significantly, especially for international shipments or remote project locations. Delivery terms, destination port, packaging method, and unloading conditions should be confirmed before final quotation. Installation support, welding equipment, seam testing, and technical documentation should also be included if the project requires a complete containment solution.
The answer to “how much is HDPE liner” depends on material thickness, raw material quality, surface texture, roll size, order quantity, manufacturing standard, transportation, installation, and testing requirements. A low unit price does not always mean a lower total project cost, because poor material selection or weak installation control can create leakage, repair work, and early replacement. For pond lining, aquaculture, reservoir, landfill, mining, wastewater, and industrial containment applications, Shanghai Yingfan Engineering Material Co., Ltd. can provide suitable HDPE liner specifications, project-based pricing, and geomembrane solutions according to actual site requirements.
The HDPE liner price per square meter depends mainly on thickness, resin quality, surface finish, and order quantity. Thin HDPE liner generally has a lower price, while thicker geomembrane liner costs more because it uses more material. Freight, packaging, currency changes, and installation requirements can also affect the final cost.
Small ponds may use 0.5 mm or 0.75 mm HDPE liner when the subgrade is smooth and the operating risk is low. Aquaculture ponds, reservoirs, and long-term water storage projects often use 0.75 mm to 1.0 mm HDPE liner for better durability. Higher-risk projects may require 1.5 mm or thicker HDPE liner.
Smooth HDPE liner is usually cheaper than textured HDPE liner because the production process is simpler. Textured liner costs more because it provides higher friction performance for slopes and special containment designs. For flat ponds, reservoirs, and aquaculture basins, smooth HDPE liner is often the more economical choice.
