An HDPE pond liner is good for many pond, reservoir, aquaculture, irrigation, and wastewater containment projects when the material is correctly selected, installed, welded, and protected. An HDPE liner is made from high-density polyethylene and is valued for waterproofing performance, chemical resistance, UV stability, puncture resistance, and long service life. For commercial pond construction, farm water storage, fish ponds, shrimp ponds, industrial lagoons, and environmental containment, an HDPE liner is often one of the most practical geomembrane options because it combines engineering strength with relatively efficient installation over large areas.
● HDPE liner is a strong waterproof pond lining material.
● HDPE liner is suitable for fish ponds, irrigation ponds, reservoirs, and wastewater lagoons.
● HDPE liner offers chemical resistance, UV resistance, and long service life.
● HDPE liner performance depends on thickness, welding, subgrade preparation, and protection.
● HDPE liner is better for large engineered ponds than many low-grade plastic sheets.
An HDPE liner forms a low-permeability barrier that reduces seepage from ponds into surrounding soil. This is important for water storage ponds, irrigation ponds, aquaculture ponds, and industrial water basins where water loss can increase operating costs. A properly welded HDPE liner creates a continuous containment layer that performs much better than loosely overlapped plastic sheets.
An HDPE liner has strong resistance to many acids, alkalis, salts, fertilizers, wastewater components, and aquaculture treatment chemicals. This makes an HDPE liner suitable for ponds where water quality, chemical exposure, or waste containment must be controlled. In industrial or wastewater pond projects, chemical compatibility should still be checked according to liquid type, concentration, temperature, and exposure duration.
A black HDPE liner usually contains carbon black, which improves resistance to ultraviolet exposure in outdoor pond applications. This feature is useful for exposed pond edges, reservoirs, evaporation ponds, and aquaculture ponds under strong sunlight. Although an HDPE liner can resist weathering, covering or protecting the liner where possible can further extend service life.
An HDPE liner can provide long-term pond containment when installed according to engineering standards. Its dense polymer structure resists aging, cracking, and environmental stress better than many ordinary plastic pond liners. The actual service life of an HDPE liner depends on thickness, sunlight exposure, water chemistry, installation quality, and mechanical protection.
An HDPE liner has high tensile strength, which makes it suitable for large pond surfaces, steep slopes, and commercial containment areas. This strength allows the HDPE liner to handle settlement, water pressure, wind uplift during installation, and field handling stress. For large aquaculture ponds, irrigation reservoirs, and wastewater lagoons, a properly specified HDPE liner is often more stable than thin PVC or low-density plastic sheets.
An HDPE liner can reduce pond seepage, maintenance work, and water replacement costs over time. Although the initial material and welding cost may be higher than simple plastic film, the long-term performance of an HDPE liner often makes it more economical for engineered ponds. For agricultural, municipal, mining, and industrial pond systems, service life and leakage control should be considered together with purchase price.
Chart 1: HDPE Liner Benefits for Pond Applications | Practical Meaning | Typical Project Value |
Waterproof performance | Reduces seepage into soil | Saves water and protects subgrade |
Chemical resistance | Handles many pond liquids | Suitable for wastewater and aquaculture |
UV resistance | Performs outdoors | Useful for exposed pond surfaces |
Tensile strength | Handles installation stress | Suitable for large pond areas |
Weldable seams | Creates continuous lining | Reduces leakage risk |
An HDPE liner is widely used in fish ponds, shrimp ponds, hatchery ponds, and aquaculture water storage basins. The liner separates pond water from natural soil, reducing turbidity, seepage, and contamination from unstable ground. A smooth HDPE liner also creates a cleaner pond bottom that supports water management, harvesting, and sludge removal.
An HDPE liner is suitable for irrigation ponds, farm reservoirs, and agricultural water storage projects where seepage control is essential. Water loss through soil can be significant in sandy, fractured, or uneven ground, and an HDPE liner reduces that loss. In agricultural projects, liner thickness should match pond depth, soil condition, equipment access, and expected service period.
An HDPE liner is commonly selected for wastewater lagoons, industrial ponds, sludge drying beds, and secondary containment basins. These applications often require stronger chemical resistance and stricter welding inspection than ordinary landscape ponds. A thick HDPE liner with proper seam testing can reduce the risk of wastewater migration into soil and groundwater.
An HDPE liner is generally stronger, more chemically resistant, and more suitable for long-term outdoor containment than many PVC pond liners. PVC liner may be more flexible, but it can contain plasticizers that may migrate over time under certain conditions. For large engineered ponds, an HDPE liner is often preferred because of its durability, weldability, and resistance to environmental stress.
An HDPE liner has higher density, higher stiffness, and better chemical resistance than many LDPE liner materials. LDPE liner is more flexible and may conform more easily to uneven surfaces, but it usually has lower tensile strength. When the project requires long service life, strong seams, and industrial-grade containment, an HDPE liner is often the stronger choice.
An HDPE liner is usually faster to install over large pond areas than concrete lining systems. Concrete can crack because of settlement, temperature movement, or poor joints, while a welded HDPE liner maintains a flexible waterproof barrier. In many pond projects, concrete may still be used for structures, but the HDPE liner provides the primary seepage control layer.
HDPE Liner Compared with Common Pond Lining Options | Waterproofing | Chemical Resistance | Installation Speed | Best Use |
HDPE liner | High | High | Fast for large areas | Fish ponds, reservoirs, wastewater ponds |
PVC liner | Medium to high | Medium | Fast | Small decorative ponds |
LDPE liner | Medium | Medium | Fast | Light-duty ponds |
Concrete | Medium if uncracked | Medium | Slower | Rigid structures and channels |
Compacted clay | Variable | Low to medium | Site-dependent | Low-risk rural ponds |
An HDPE liner should be selected according to pond size, water depth, subgrade quality, slope angle, and operating conditions. Common pond thicknesses include 0.5 mm, 0.75 mm, 1.0 mm, 1.5 mm, and 2.0 mm, with thicker material used for higher-risk projects. A thin HDPE liner may be acceptable for small light-duty ponds, while aquaculture, irrigation reservoirs, wastewater ponds, and mining ponds often require thicker specifications.

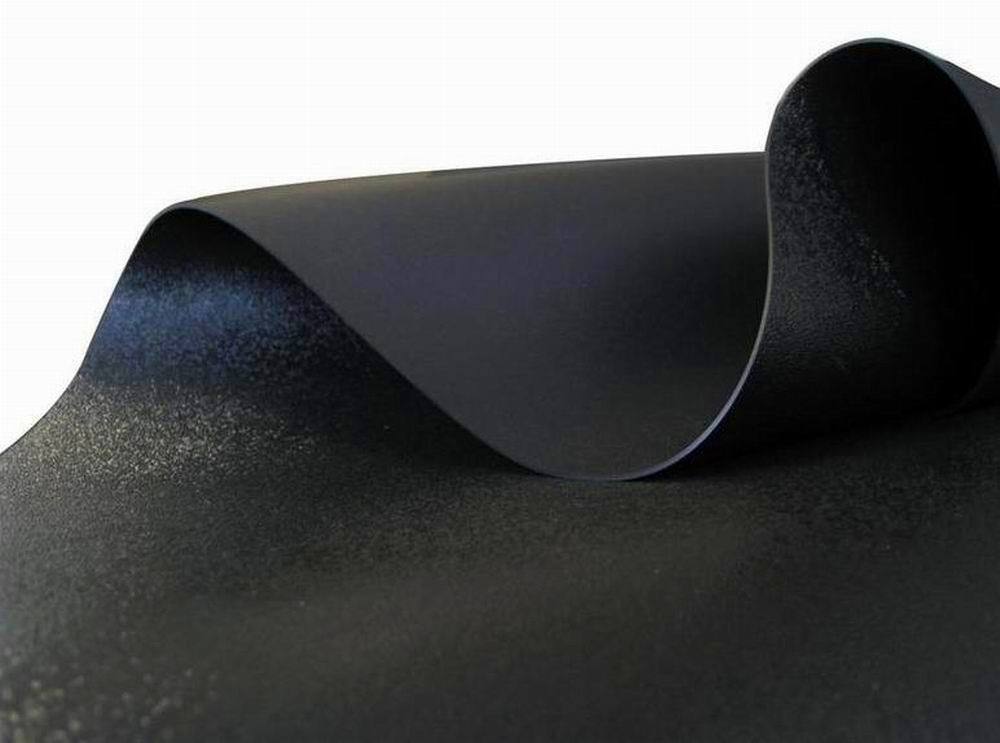

A smooth HDPE liner is commonly used for pond bottoms, fish ponds, irrigation ponds, and applications where cleaning is important. A textured HDPE liner provides higher interface friction and is useful on steep slopes or covered sidewalls. The choice should be based on slope stability, cover soil, installation method, and the overall geotechnical design of the pond.
A reliable HDPE liner should have consistent thickness, stable raw material quality, proper carbon black content, tensile strength, elongation, and puncture resistance. These technical indicators affect how the HDPE liner performs during welding, filling, operation, and long-term exposure. For commercial pond projects, quality documentation and roll traceability are important parts of material control.
Before placing an HDPE liner, the pond base should be shaped, compacted, and cleared of stones, roots, sharp debris, and standing water. Poor subgrade preparation can create pressure points that damage the HDPE liner after the pond is filled. Where the soil is rough or contains angular particles, a geotextile cushion layer should be considered beneath the HDPE liner.
An HDPE liner should be deployed according to panel layout, slope direction, wind condition, and welding sequence. Dragging the HDPE liner over sharp ground can cause scratches, gouges, and hidden damage before the pond is even filled. During deployment, wrinkles, folds, overlap width, and panel alignment should be controlled before welding starts.
An HDPE liner is normally joined by hot wedge welding for long seams and extrusion welding for details, repairs, corners, and pipe penetrations. Welding quality is critical because even a strong HDPE liner sheet can fail if seams are poorly made. Air pressure testing, vacuum box testing, spark testing, and trial welds are commonly used to confirm seam integrity.
An HDPE liner can be punctured if it is installed directly over sharp stones, roots, construction debris, or rough concrete. This problem is not usually caused by the HDPE liner material itself but by poor site preparation and insufficient protection. A smooth subgrade, geotextile cushioning, and controlled installation traffic can reduce puncture risk.
An HDPE liner expands and contracts with temperature changes, especially during outdoor installation. Excessive wrinkles can create stress points, poor contact areas, and difficulties during welding or covering. Skilled installers manage deployment time, panel tension, anchoring, and seam sequence to keep the HDPE liner stable.
An HDPE liner requires proper welding temperature, pressure, speed, overlap, and surface cleanliness. Dust, moisture, low temperature, overheating, or incorrect equipment settings can weaken the seam. Since the seam is the most critical part of an HDPE liner pond system, inspection and testing should not be skipped.
An HDPE liner is a good choice for large ponds where water loss, seepage control, and long service life are important. It is especially suitable for aquaculture farms, irrigation reservoirs, wastewater lagoons, mining water ponds, and industrial containment basins. In these projects, the HDPE liner provides a durable waterproof barrier that can be welded into a continuous system.
An HDPE liner is good when the pond liquid must be separated from soil and groundwater. This includes wastewater ponds, manure lagoons, landfill leachate ponds, chemical storage ponds, and industrial water basins. The chemical resistance and low permeability of an HDPE liner make it suitable for environmental protection and containment design.
An HDPE liner may be less convenient for very small decorative ponds with many curves, shelves, rocks, and irregular shapes. The material is stiffer than some flexible liners, so careful detailing is required around complex geometry. For engineered ponds and functional containment, however, the strength and durability of an HDPE liner often outweigh the stiffness.
An HDPE pond liner is good when the project requires reliable waterproofing, chemical resistance, UV resistance, seam weldability, and long-term containment performance. A properly specified HDPE liner can serve fish ponds, shrimp ponds, irrigation reservoirs, wastewater lagoons, mining ponds, industrial basins, and environmental containment systems with strong seepage control. The best results come from correct thickness selection, proper subgrade preparation, professional welding, seam testing, and suitable protection layers. For projects requiring stable HDPE liner supply and technical geomembrane support, Shanghai Yingfan Engineering Material Co., Ltd. provides HDPE geomembrane solutions for pond lining, aquaculture, water storage, wastewater containment, mining, and industrial anti-seepage applications.
An HDPE liner is commonly used in fish ponds and aquaculture ponds because it separates pond water from soil and reduces seepage. The selected HDPE liner should be suitable for aquaculture use and installed without contamination from oils, chemicals, or construction waste. After installation, the pond should be cleaned and conditioned according to aquaculture operating requirements before stocking fish.
The right HDPE liner thickness depends on pond size, depth, soil condition, slope, and operating risk. Small light-duty ponds may use 0.5 mm or 0.75 mm material, while commercial aquaculture ponds, reservoirs, and wastewater ponds often use 1.0 mm, 1.5 mm, or thicker material. A thicker HDPE liner usually provides better puncture resistance and a higher safety margin.
An HDPE liner can be repaired by welding a patch over the damaged area. The damaged section should be cleaned, prepared, and covered with a compatible HDPE patch that extends beyond the defect. After repair, the HDPE liner patch seam should be inspected or tested to confirm sealing quality.
