In civil engineering and environmental protection projects, materials like geomembrane and geotextile are essential for tasks such as waterproofing, filtration, and separation. But many professionals still find themselves asking: “What’s the real difference between geotextile and geomembrane?”
This article breaks it down in a clear and practical way, looking at what each material does, where it’s used, and the benefits they offer. We’ll also highlight how Shanghai Yingfan Engineering Material Co., Ltd.—a trusted name in the industry—delivers high-quality geosynthetic solutions to projects around the world.Whether you’re working on a landfill cover or setting up pond liners for agriculture, knowing how these two materials differ can help you choose the best fit for your needs. Let’s take a closer look.

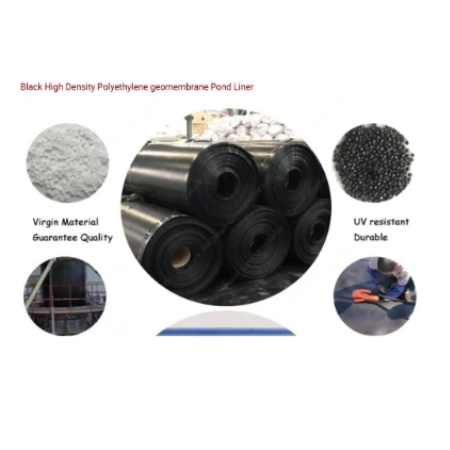

A geomembrane is a low-permeability synthetic membrane liner used to control fluid or gas migration in a structure or system. Typically made from HDPE (High-Density Polyethylene), LLDPE, LDPE, or other polymeric materials, HDPE geomembrane is the most widely used type due to its excellent resistance to chemicals, UV rays, and mechanical stress.
At Shanghai Yingfan, our HDPE geomembrane is manufactured with high-quality raw materials and certified under ISO and CE standards. As a leading environmental membrane supplier, our products are ideal for a wide range of applications.
Geotextile is a permeable fabric made from polypropylene or polyester, used to improve soil stability, provide filtration, separation, or drainage. Unlike geomembrane, geotextile does not function as a barrier to liquids, but rather allows fluids to pass through while retaining soil or particles.
Yingfan produces both woven and nonwoven geotextile fabrics, commonly used in road construction, drainage systems, and beneath geomembrane installation to provide cushioning or protective layers.
| Feature | Geomembrane | Geotextile |
|---|---|---|
| Material | HDPE, LLDPE, LDPE | Polypropylene, Polyester |
| Permeability | Impermeable | Permeable |
| Main Function | Fluid/gas containment | Separation, filtration, drainage |
| Surface | Smooth or Textured | Woven or Nonwoven |
| Use Cases | Landfills, ponds, mining, wastewater | Roads, drainage, underlayments |
| Installation | Requires heat welding and sealing | Simple placement |
| Durability | High UV and chemical resistance | Moderate, depends on type |
Understanding the difference between geomembrane and geotextile is crucial when designing systems for environmental membrane applications. Geomembrane is your go-to material when leakage prevention is the priority, while geotextile is better suited for support and filtration.
Geomembrane is used in a wide range of critical infrastructure projects. Below are the main applications of HDPE geomembrane and environmental membranes provided by Yingfan:
In landfill design, HDPE geomembrane acts as a primary liner to prevent leachate from contaminating groundwater. Yingfan’s geomembrane installation services ensure seamless welding and minimal risk of leakage. Our materials are also used in landfill capping systems to prevent rainwater infiltration and odor emissions.
Mining operations generate hazardous tailings and process water. Our HDPE geomembrane liners are chemically resistant and ideal for lining tailings dams, heap leach pads, and pregnant solution ponds. These systems prevent toxic substances from seeping into the environment.
Factories and processing plants rely on HDPE geomembrane liners to contain industrial effluents and avoid environmental contamination. Whether it's a chemical plant or food processing facility, Yingfan’s environmental membranes offer long-term durability and containment security.
For aquaculture, irrigation, or manure lagoons, geomembrane pond liners are essential. Yingfan’s farming liner applications help farmers conserve water, reduce seepage, and improve overall farm productivity. Our geomembrane for fish ponds is particularly popular in Southeast Asia and Africa.
Ash ponds, cooling water reservoirs, and fuel containment areas at power plants require reliable environmental membranes. HDPE geomembrane offers excellent performance under extreme temperatures and chemical exposure typical of power generation sites.
While geomembrane acts as a barrier, geotextile is often used as a protective layer underneath or above it. In many geomembrane installation projects, nonwoven geotextile is laid below to cushion the liner from sharp objects and above to shield it from mechanical damage during backfilling.
Geotextile also assists in composite drainage network systems, another product offered by Yingfan. These systems efficiently drain water while protecting the HDPE geomembrane from hydrostatic pressure.
Yingfan recently completed a geomembrane installation project for the Tianziling Landfill in Hangzhou, China. The project required over 100,000 square meters of HDPE geomembrane with accompanying geotextile layers. The challenge was to install an impermeable liner system within a tight deadline during the rainy season.
Thanks to our experienced technical team and advanced welding equipment, the project was completed on time with zero leakage incidents — a testament to Yingfan's position as a best geomembrane manufacturer in China.
When it comes to reliability and performance, Shanghai Yingfan Engineering Material Co., Ltd. stands out in the geosynthetics industry. Here's what makes us a global leader in environmental membrane solutions:
Certified Quality: ISO 9001, ISO 14001, ISO 45001, CE standards
Wide Product Range: HDPE geomembrane, geotextile, geosynthetic clay liner, composite drainage network
In-House R&D: Continuous product innovation and customization
Complete Service: From production to geomembrane installation
Global Reputation: Exported to over 30 countries with outstanding client feedback
Whether you need geomembrane pond liners, aquaculture liners, or industrial waste containment liners, Yingfan delivers dependable solutions tailored to your project.
Choosing the right material depends on your specific application. Ask yourself:
Is your goal to contain fluids or gases? → Choose HDPE geomembrane
Do you need filtration or separation? → Go with geotextile
Is your site exposed to chemicals or UV rays? → Geomembrane is more resistant
Do you require a drainage layer beneath the liner? → Use geotextile in combination
Still unsure? Our technical experts at Yingfan are ready to provide free consultation and guide you through material selection and geomembrane installation.
Proper geomembrane installation is key to its effectiveness. At Yingfan, our process includes:
Site Preparation: Clearing, grading, and compacting the subgrade
Geotextile Layering: If needed, for protection and drainage
Liner Deployment: Rolling out large sheets of HDPE geomembrane
Welding and Seaming: Using hot wedge or extrusion welding
Testing and Inspection: Air pressure, vacuum box, and spark testing
Backfilling or Covering: To protect the liner from UV and physical damage
Our team has completed hundreds of geomembrane pond liner projects, offering both materials and full-service installation globally.
Q1: What’s the main difference between geomembrane and geotextile?
A1: Geomembrane is impermeable and used for fluid containment, while geotextile is permeable and used for filtration, separation, or drainage.
Q2: What is geomembrane used for?
A2: Geomembrane is used in landfills, mining, aquaculture, industrial wastewater treatment, and power plant containment to prevent leakage and protect the environment.
Q3: How long does a geomembrane liner last?
A3: A high-quality HDPE geomembrane liner can last 30–50 years or more, depending on environmental exposure and installation quality.
Q4: Can I use geomembrane for a pond liner?
A4: Absolutely. Many aquaculture and irrigation projects use geomembrane pond liners to reduce water loss and control contamination.
Q5: Is geomembrane installation difficult?
A5: It requires trained personnel and specialized equipment. Yingfan offers full geomembrane installation services to ensure a leak-free system.
Q6: What is an environmental membrane?
A6: An environmental membrane is another term for geomembrane, used in applications aimed at protecting the environment from contamination.
Q7: Where can I buy the best HDPE geomembrane?
A7: You can buy directly from Shanghai Yingfan, a top geomembrane manufacturer with a global reputation and export experience.
In conclusion, while geotextile and geomembrane are both essential in civil and environmental engineering, they serve different purposes. Geomembrane, especially HDPE geomembrane, is crucial for impermeable containment, while geotextile supports drainage and soil stabilization.
If you're working on a landfill containment, mine tailing pond, farming liner application, or any environmental membrane project, rely on Yingfan for high-quality products, technical support, and professional geomembrane installation.Let Yingfan help you build a safer, greener, and more efficient world — one layer at a time.
